Driver or Passenger Seat Cushion Heater Replacement

Driver or Passenger Seat Cushion Heater Replacement

Removal Procedure

1. Remove the seat from the vehicle.
2. Remove the seat cushion trim cover.

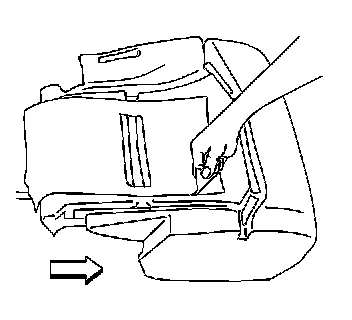

3. Peel the seat cushion heater off of the pad.
4. Disconnect the seat cushion heater wiring harness.



Installation Procedure

1. Connect the cushion heater wiring harness.




2. Install the seat cushion heater.
3. Install the seat cushion trim cover.
4. Install the seat in the vehicle.
