K Tahoe 4WD V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

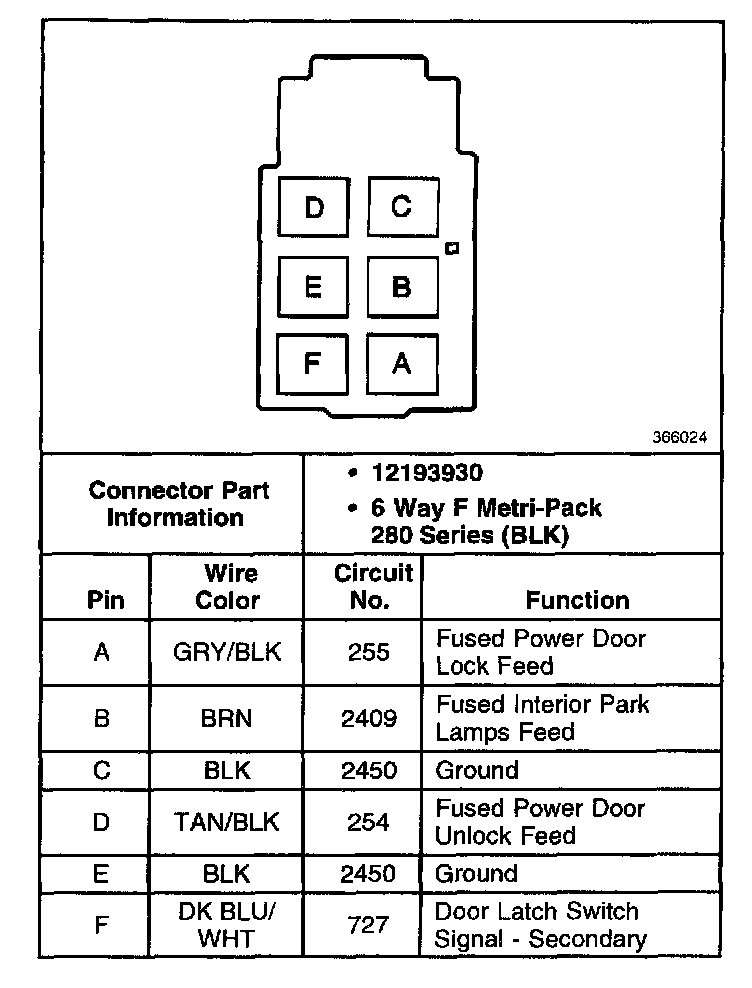

C-2 I/P Wiring Harness Junction Block
C-2 I/P Wiring Harness Junction Block
C-2 I/P Wiring Harness Junction Block:
