Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Diagrams
>>
Connector Views
>>

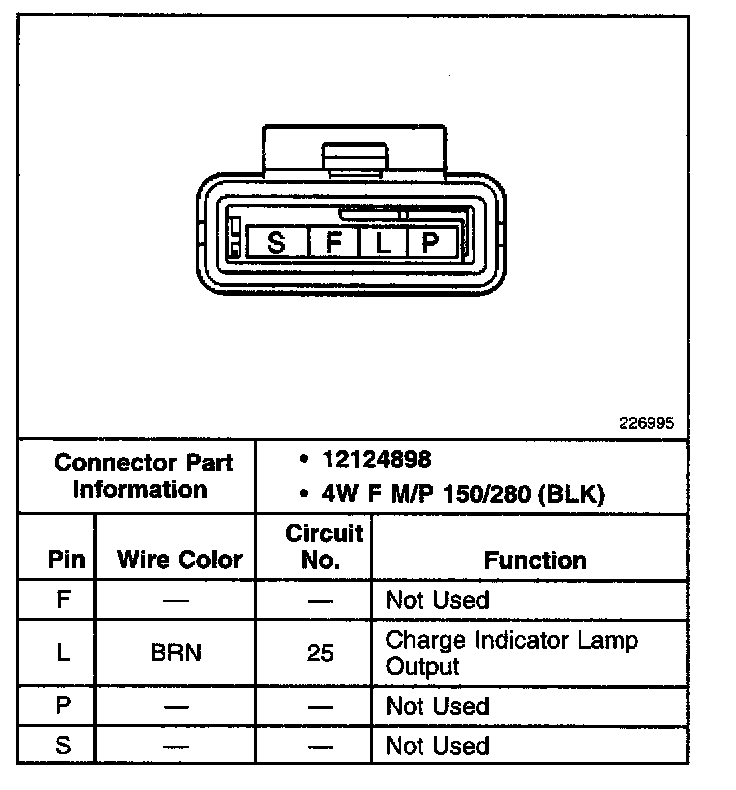

Generator (124 Amp)
Generator (124 Amp)
Generator (124 Amp):
