Home
>>
Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

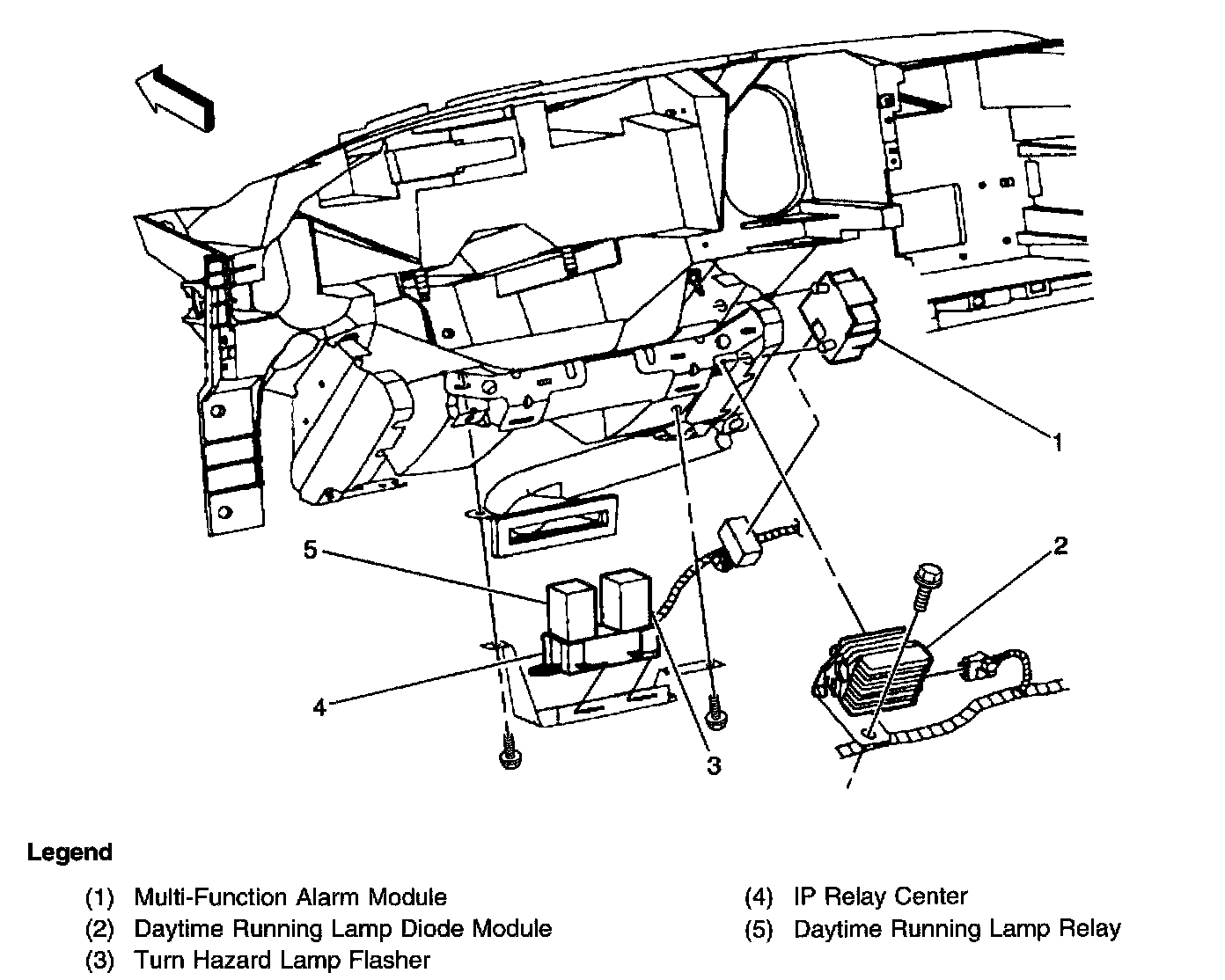

IP Relay Center
IP Relay Center
Instrument Panel Relay Center:
Under the IP, on the left side
