Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Solenoid, A/T >> Solenoid Controls - 4L60-E

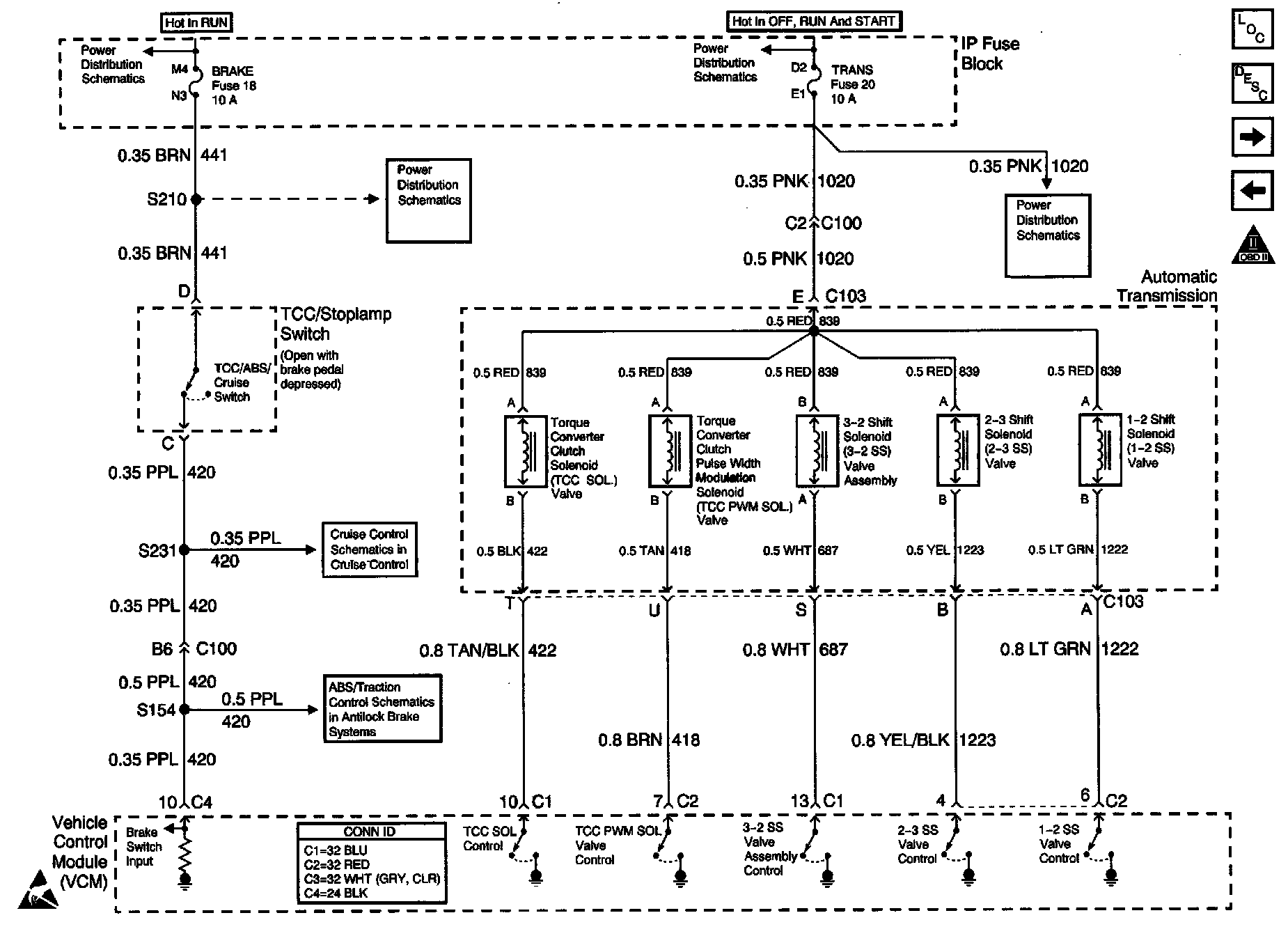

Solenoid Controls - 4L60-E

Engine Controls Schematics: Solenoid Controls:
