Express 1/2 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>

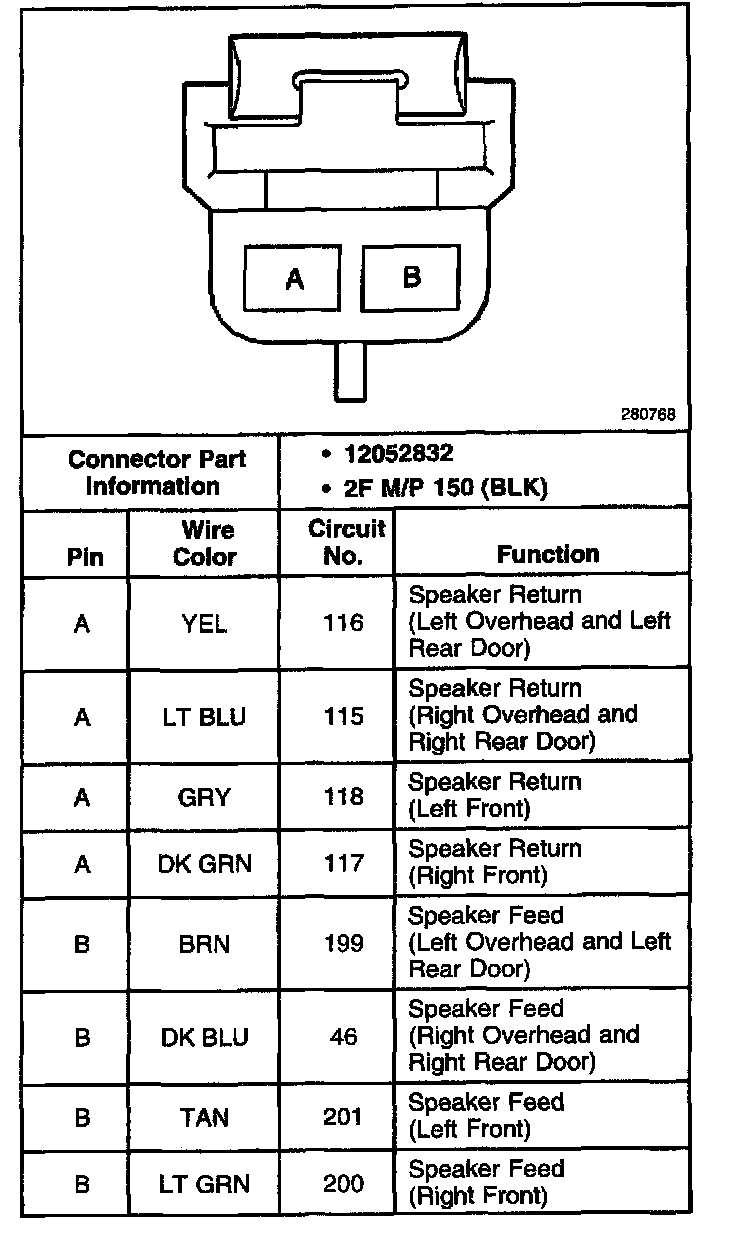

Radio Speaker Connector
Radio Speaker Connector
Radio Speaker Connector:
