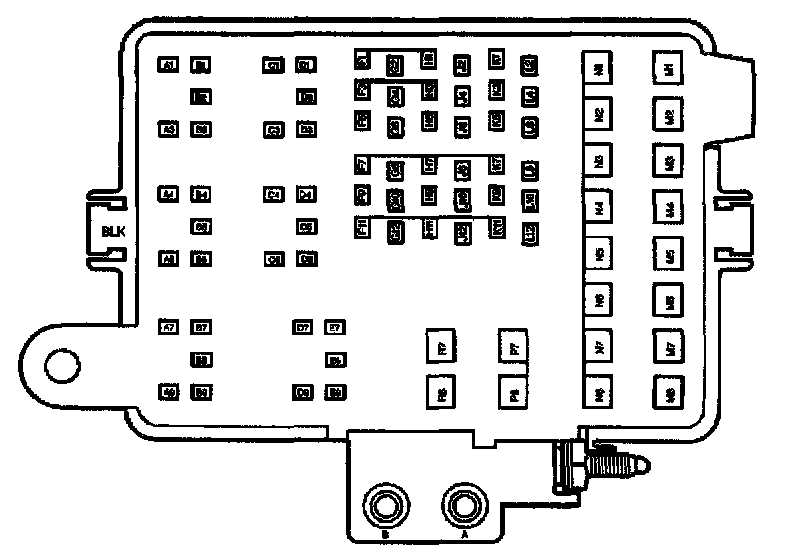

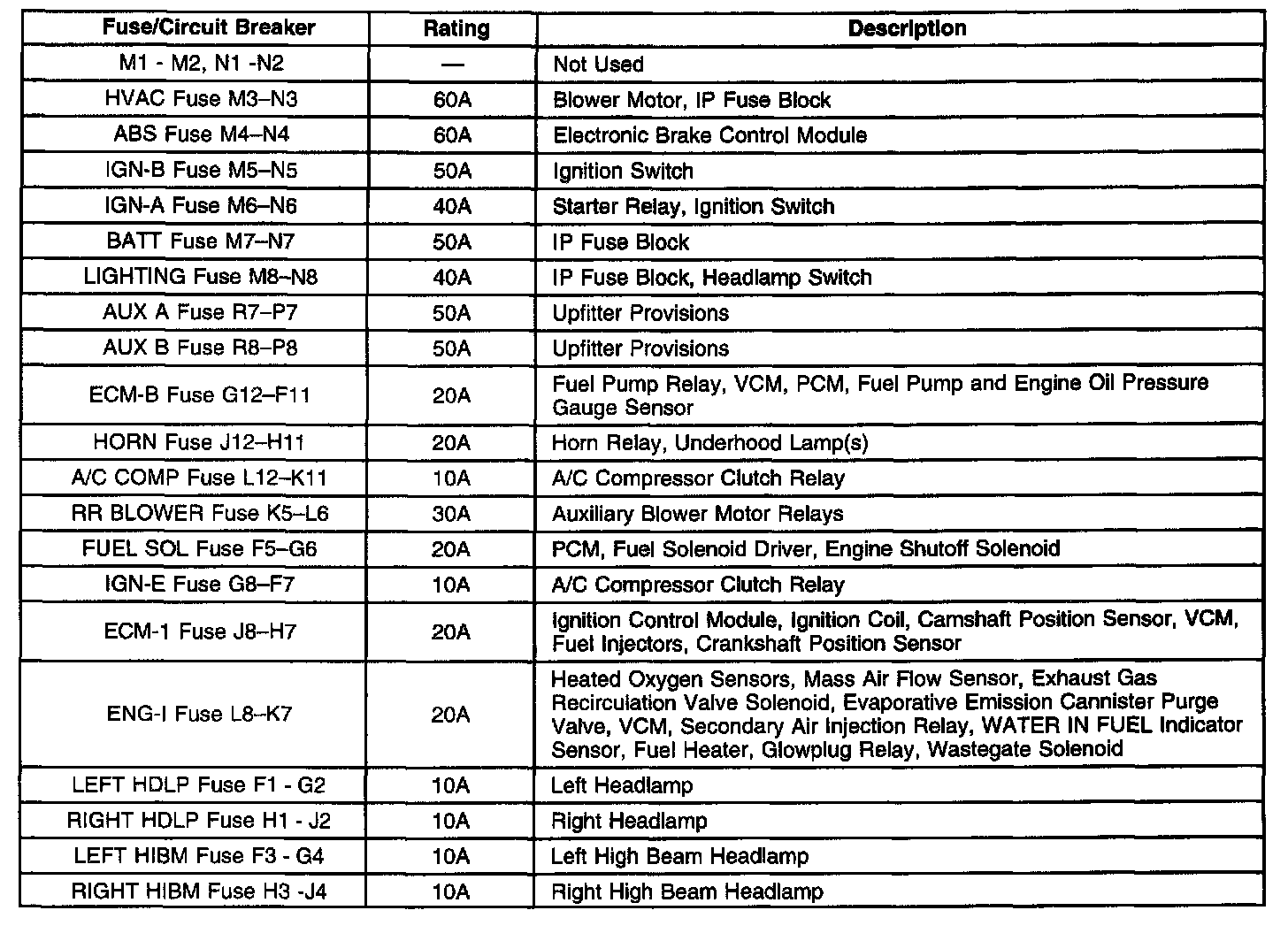

Underhood Fuse-Relay Center, Bottom View
Underhood Fuse-Relay Center, Bottom View
Underhood Fuse-Relay Center, Bottom View:
