Control Assembly, HVAC
>>
Rear Auxiliary HVAC Controller
Rear Auxiliary HVAC Controller

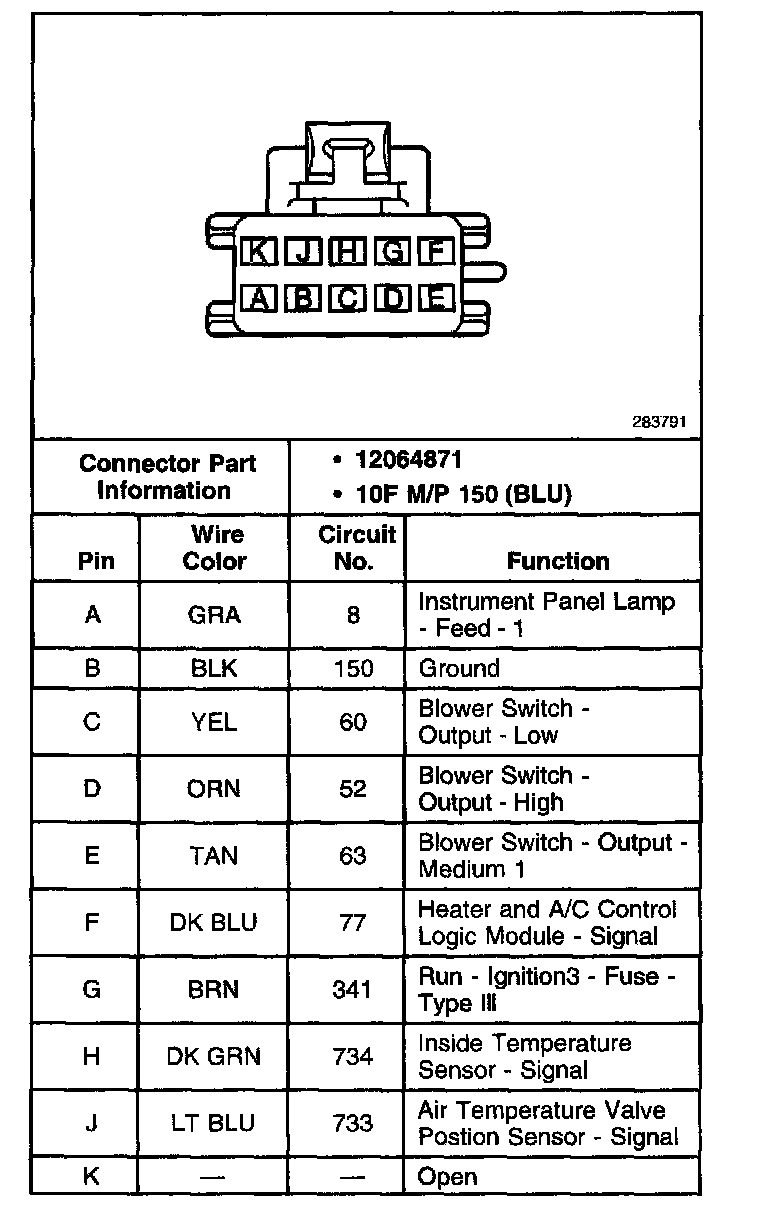

Rear Auxiliary HVAC Controller:
