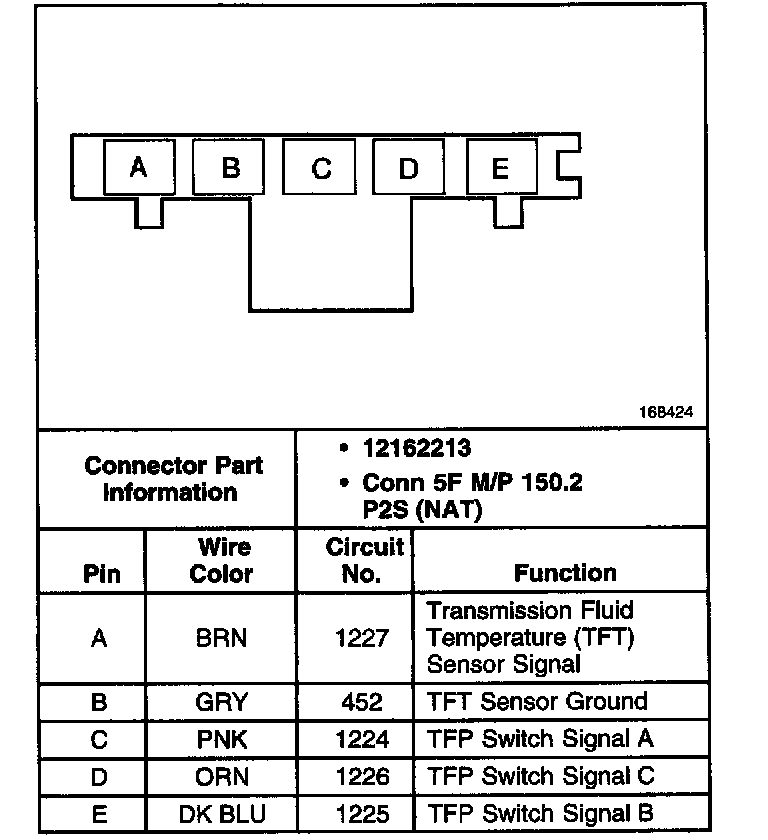

A/T Fluid Pressure (TFP) Manual Valve Position Switch Connector
A/T Fluid Pressure (TFP) Manual Valve Position Switch Connector
