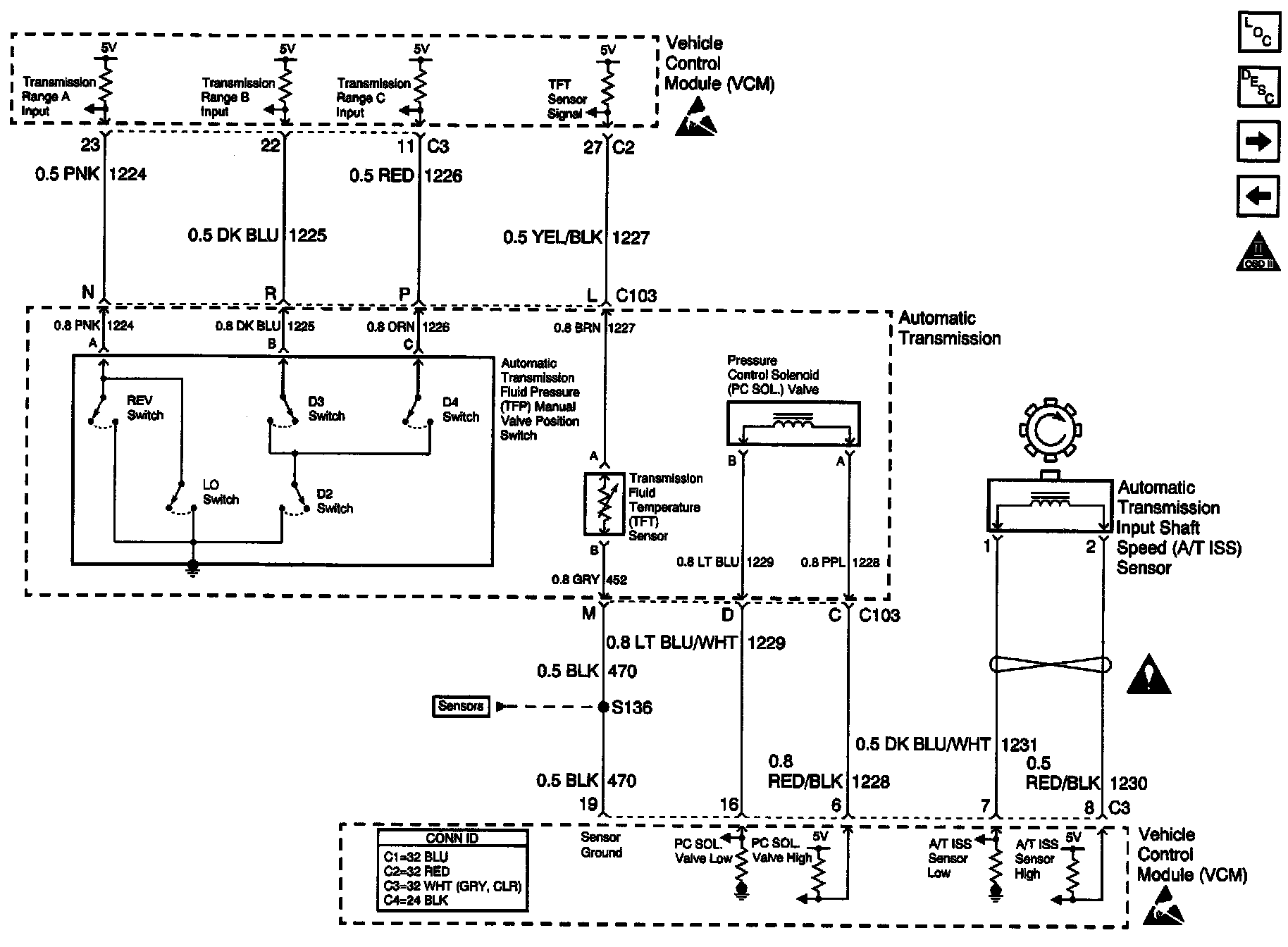

Transmission Switch Controls - 4L80-E
Transmission Switch Controls - 4L80-E
Engine Controls Schematics: Transmission Switch Controls:
