Home
>>
Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
Splice Packs By Number
>>
SP152
SP152

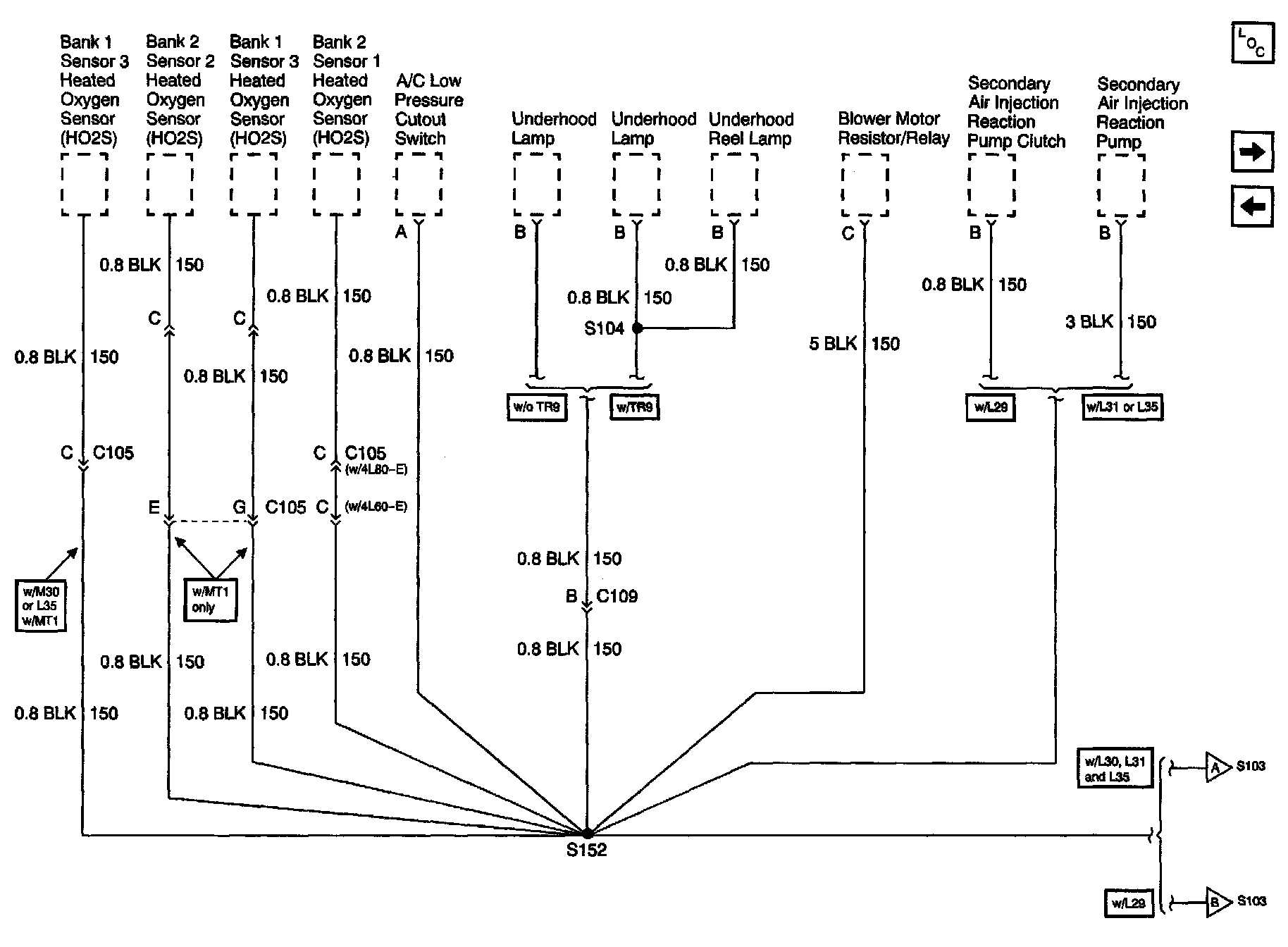

Ground Distribution Schematics: Components Through S152 To G103:
