Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Rear Power Door Lock Switch
Rear Power Door Lock Switch

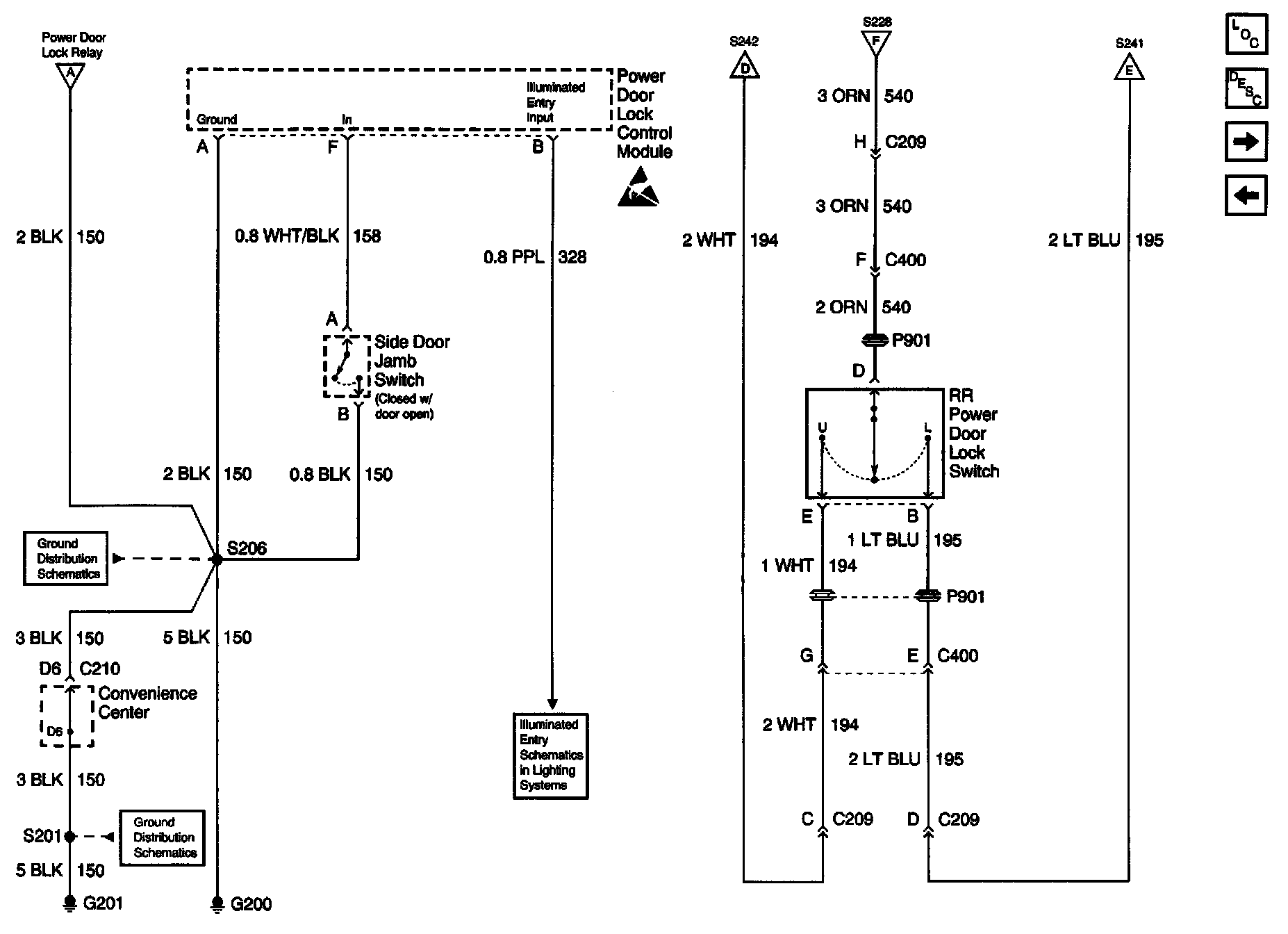

Door Lock/Indicator Schematics: Rear Power Door Lock Switch:
