Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>
Door Lock Actuators
Door Lock Actuators

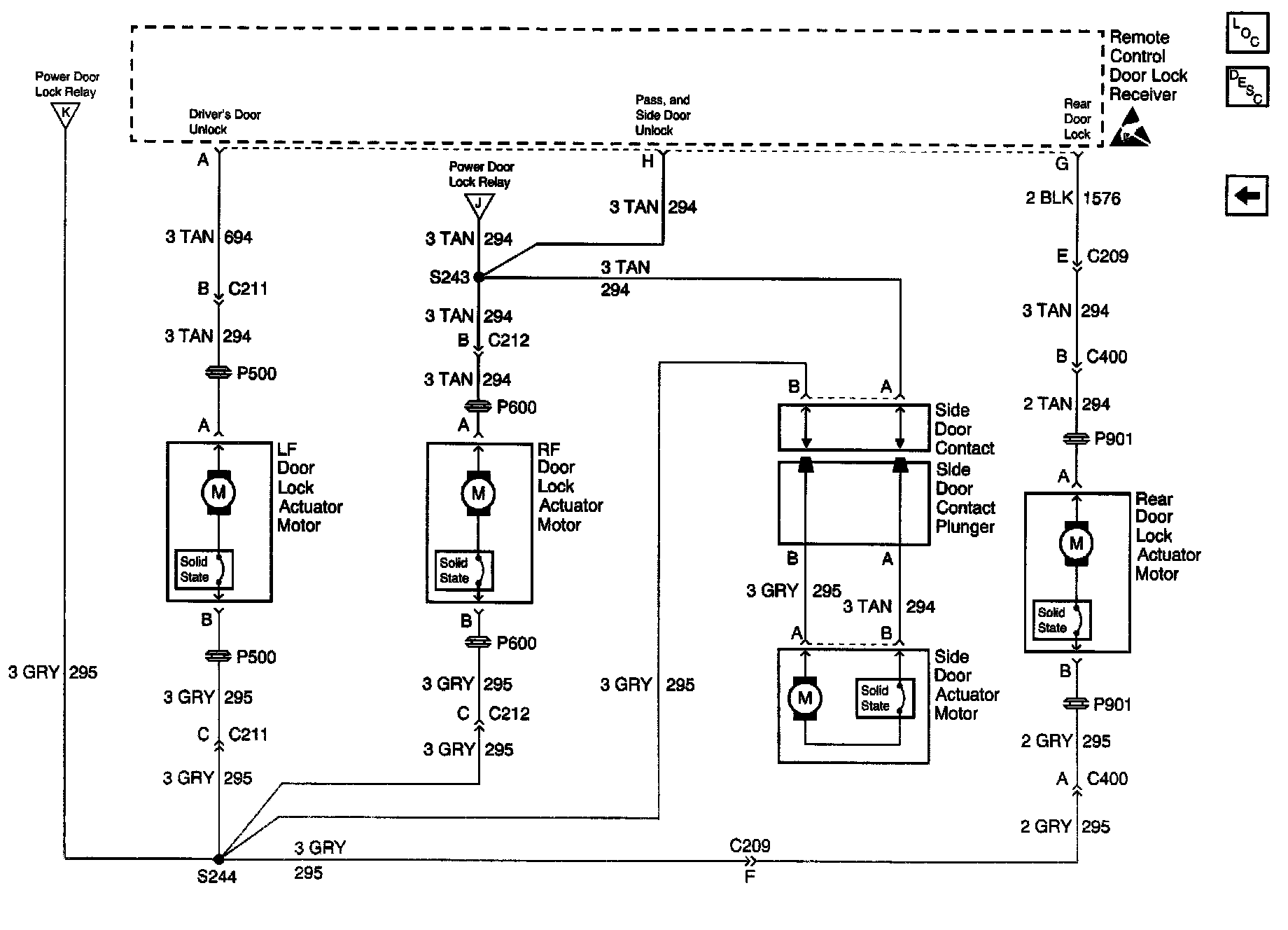

Keyless Entry Schematics: Door Lock Actuators:
