Transmission Solenoid Controls - 4L60-E
Transmission Solenoid Controls - 4L60-E

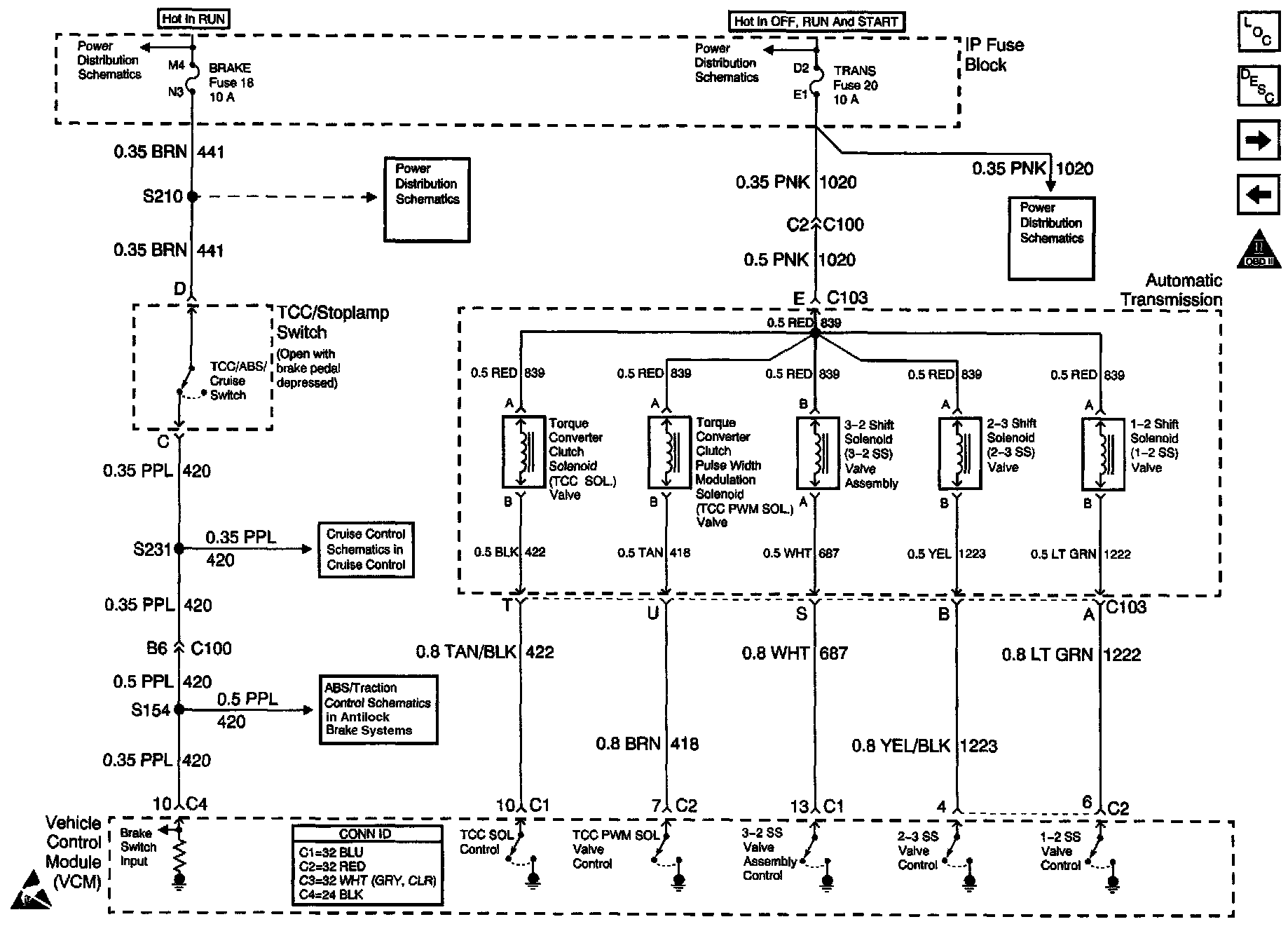

Engine Controls Schematics: Transmission Solenoid Controls:
