IP, VCM, EBCM, and VSS
IP, VCM, EBCM, and VSS

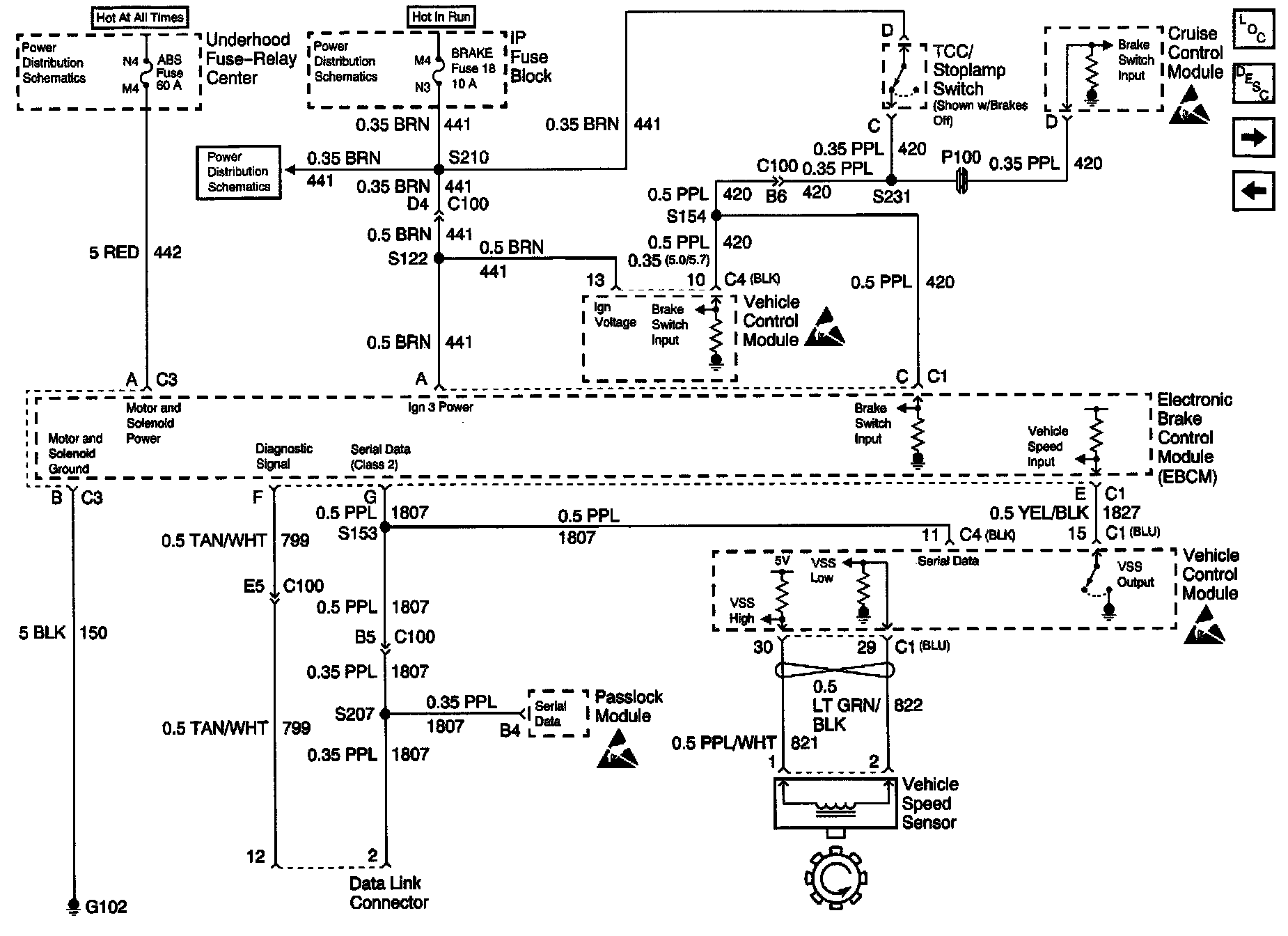

ABS Schematics (Domestic): ABS System Schematics (IP, VCM, Sensors, EBCM, And VSS):
