Home
>>
Chevy Truck
>>
2000
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C299
>>
C219
C219

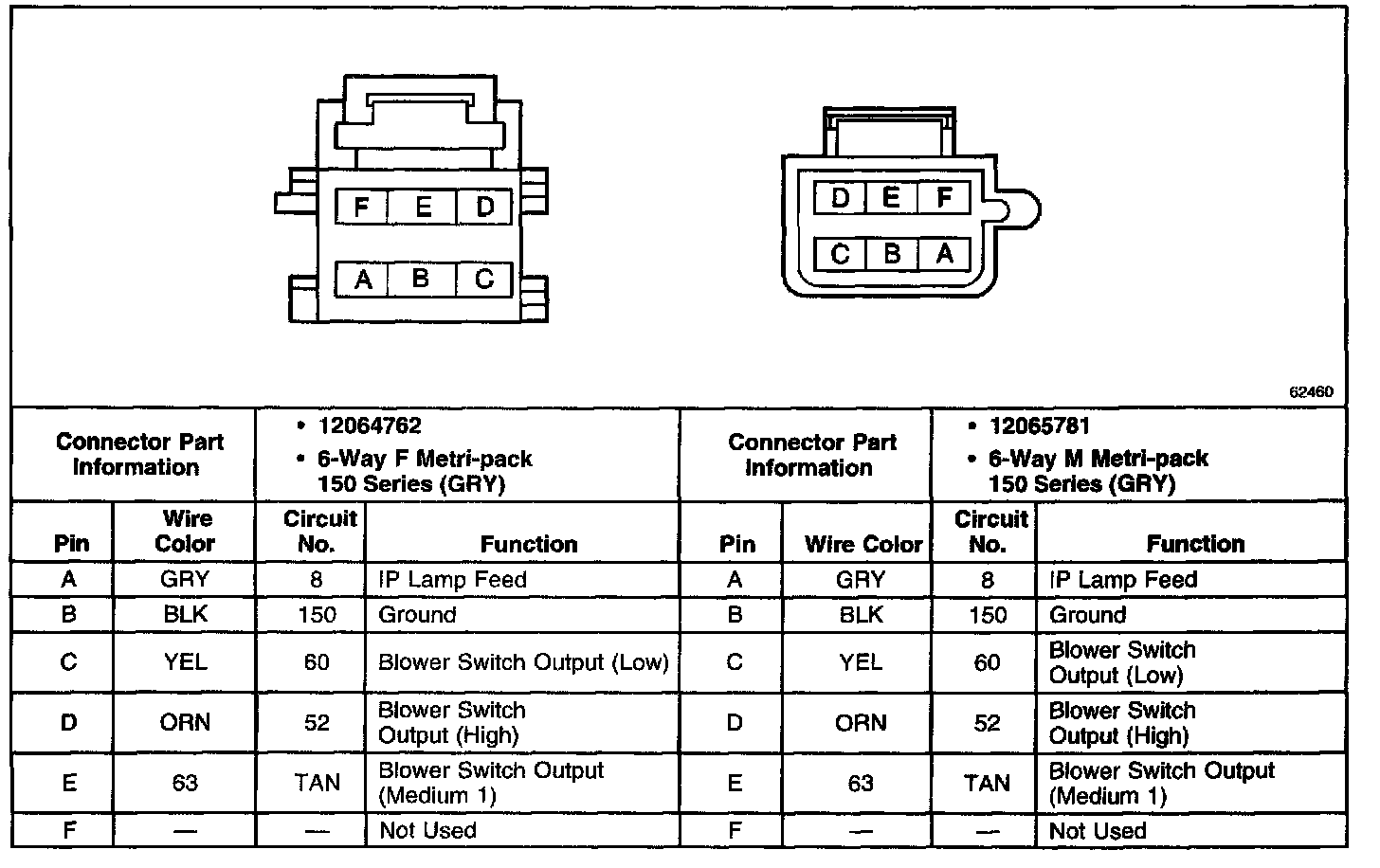

In-Line Harness Connector C219:
