Home >> Chevy Truck >> 2000 >> Express 1/2 Ton Van V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Headlamp >> System Diagram >> Headlamp Left/Right (Export)

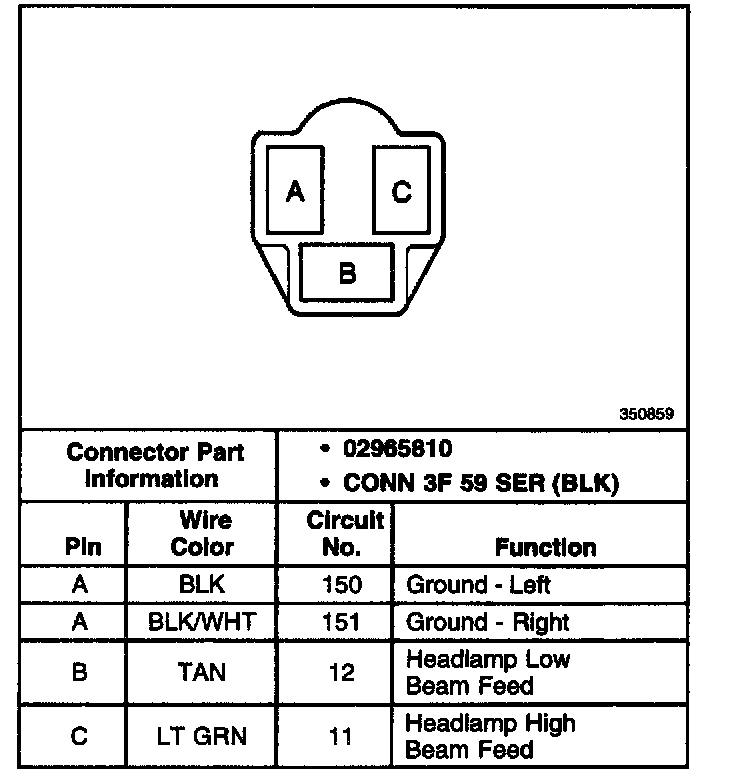

Headlamp Left/Right (Export)

Headlamp Left/Right (Export):
