Canister Purge Control Valve
Canister Purge Control Valve

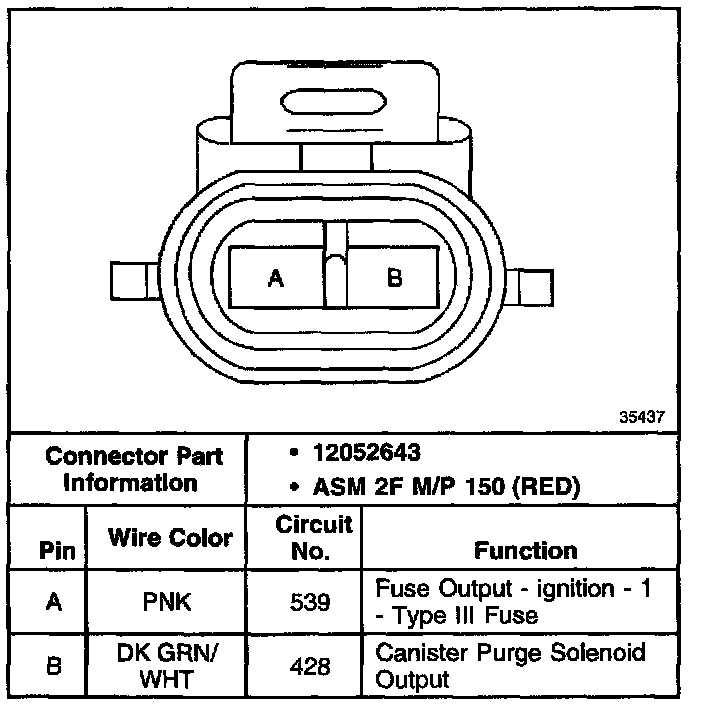

Evaporative Emission Canister Purge Valve Connector:
