Blower Motor Relay
>>
Blower Motor Resistor/Relay Connector
Blower Motor Resistor/Relay Connector

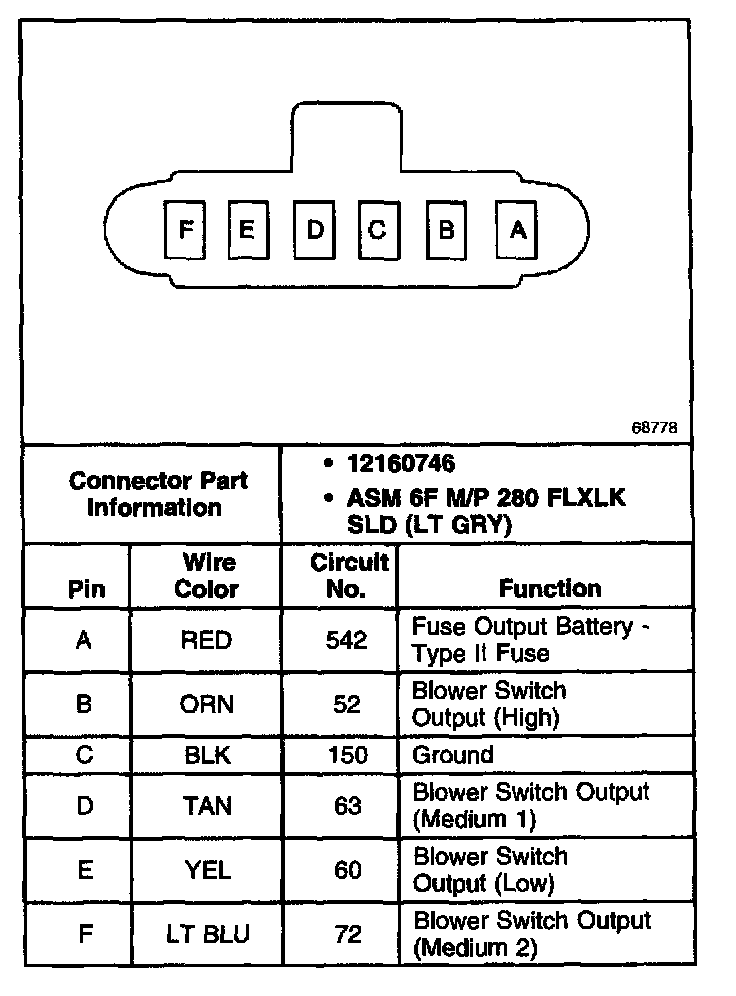

Auxiliary Blower Motor Resistor/Relay Connector:
