Air Injection Pump
>>

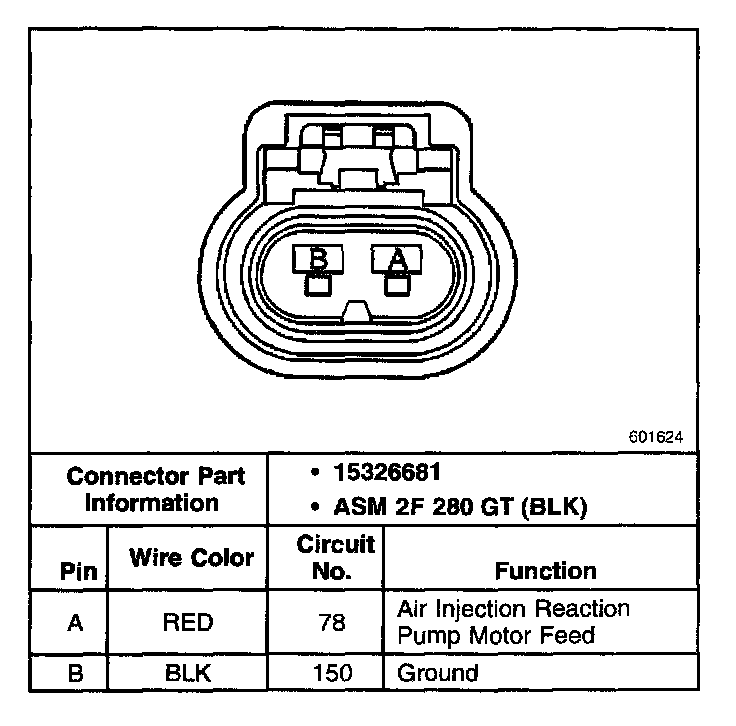

Air Injection Reaction (AIR) Pump Connector
Air Injection Reaction (AIR) Pump Connector
Air Injection Reaction (AIR) Pump Connector:
