Home
>>
Chevy Truck
>>
2000
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

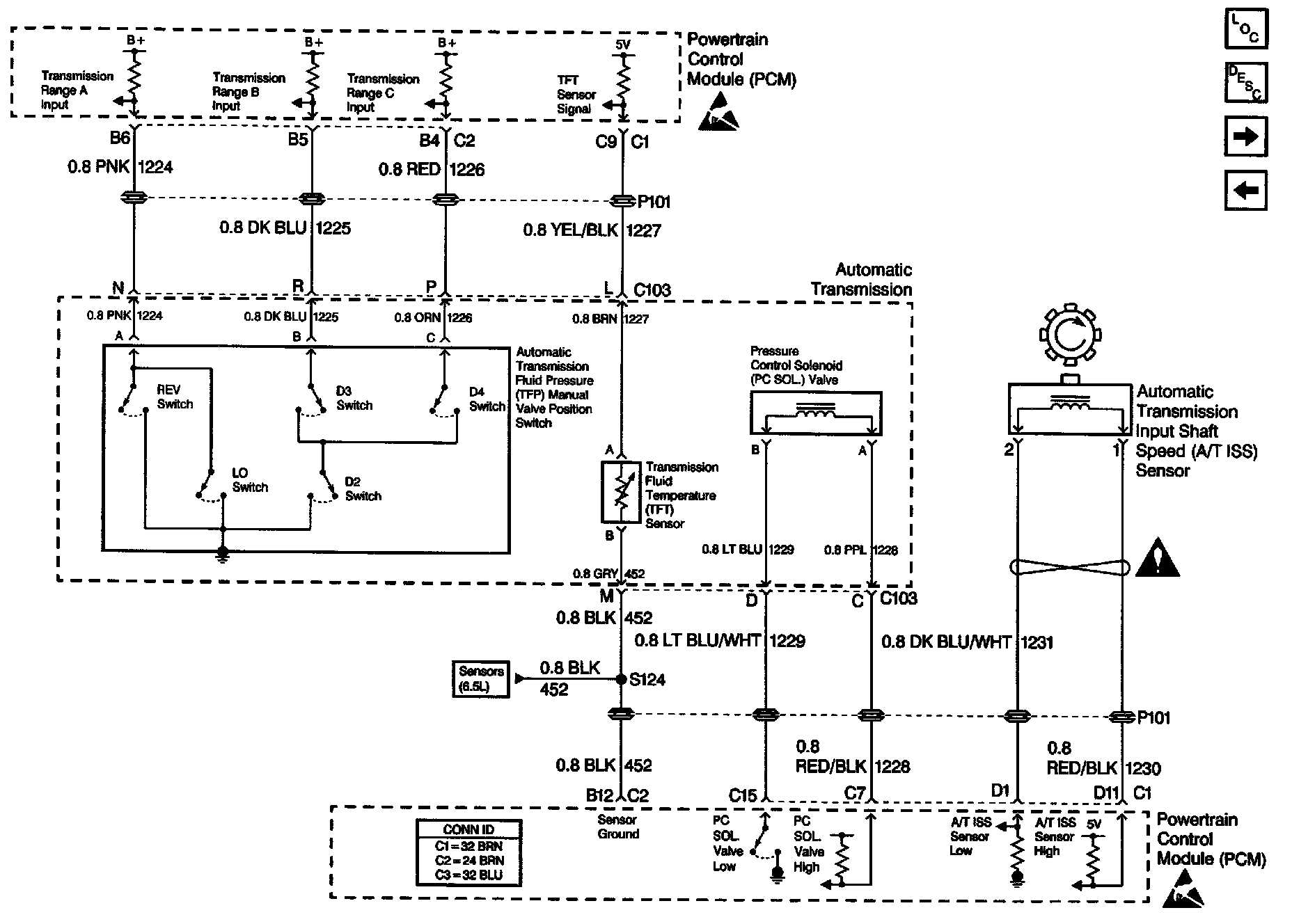

Diesel (Sensor, Solenoid and GND Controls)
Diesel (Sensor, Solenoid and GND Controls)
