Chevy Truck
>>
2000
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Canister Purge Control Valve
Canister Purge Control Valve

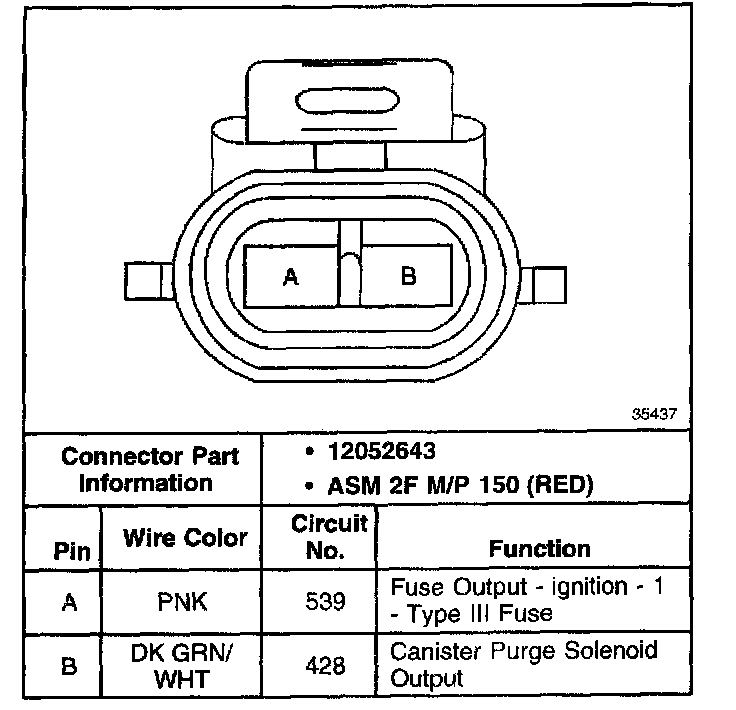

Evaporation Emission Canister Purge Valve Connector:
