Chevy Truck
>>
2000
>>
Express 1 Ton Van V8-454 7.4L VIN J SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Coil
>>
Diagrams
Ignition Coil: Diagrams

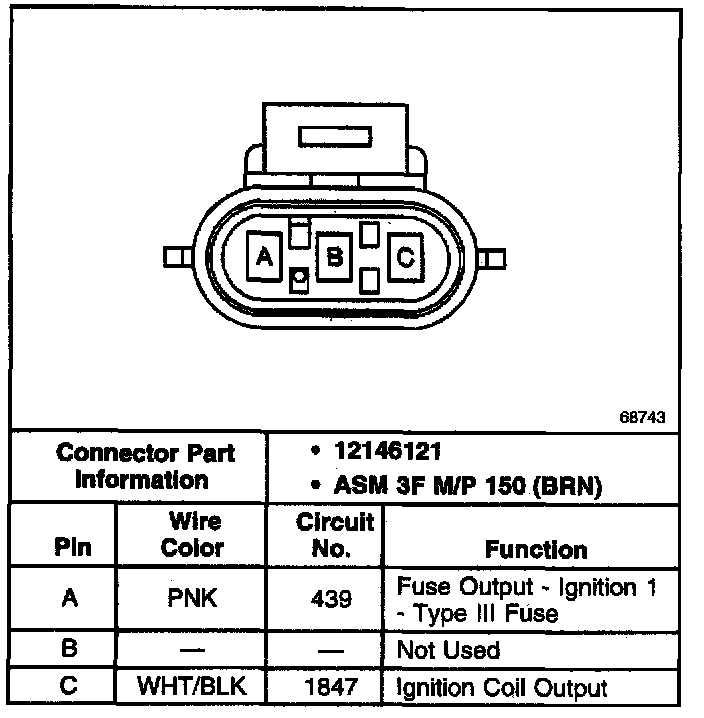

Ignition Coil Connector:
