4L60-E Automatic Transmission

Removal Procedure

^ Tools Required
- J29714-A Servo Cover Depressor

1. Raise the vehicle. Refer to Vehicle Lifting.

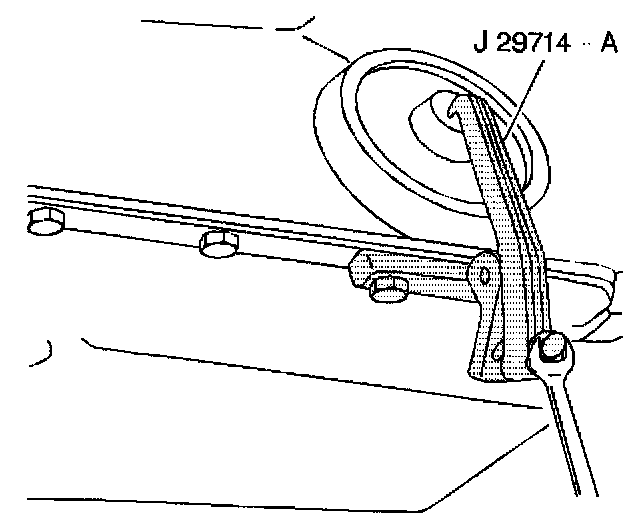

2. Instal the J29714-A.
3. Tighten the bolt in order to compress the servo cover.
4. Remove the servo cover retaining ring.
5. Remove the J29714-A.

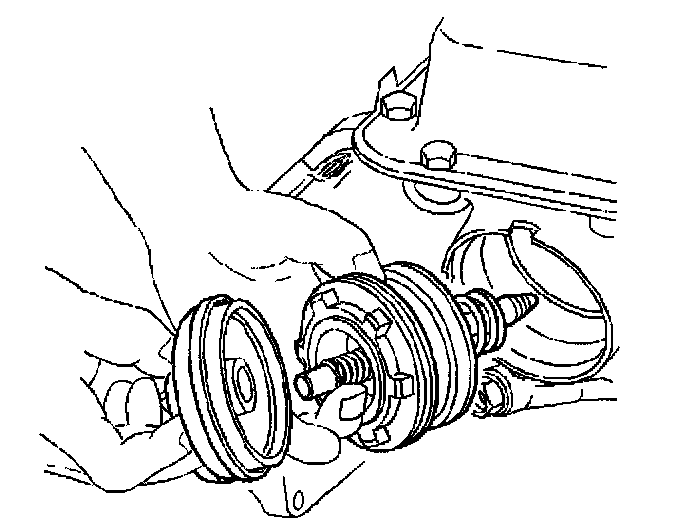

6. Remove the servo cover and the O-ring seal. If the servo cover seems to be hung up on the seal, cut and remove the O-ring seal before removing the cover.
7. Remove the 2-4 servo assembly.

Installation Procedure

^ Tools Required
- J29714-A Servo Cover Depressor

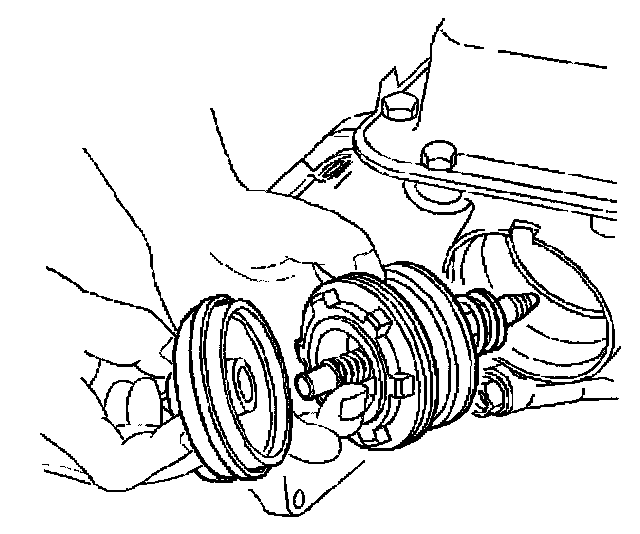

1. Install the the 2-4 servo assembly into the 2-4 servo bore.

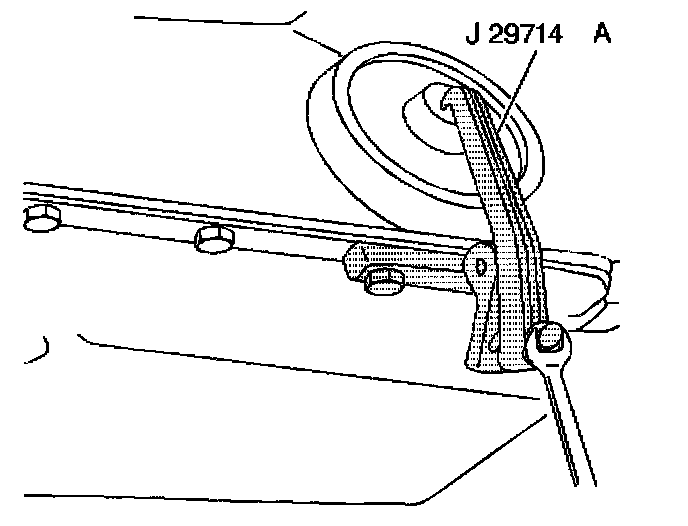

2. Install the J29714-A.
3. Tighten the bolt in order to compress the servo cover.
4. Install the servo cover retaining ring.





5. Remove the J29714-A from the oil pan flange.

Notice: Refer to Fastener Notice in Service Precautions.

6. Install the oil pan bolt.
Tighten the oil pan bolt to 11 Nm (97 inch lbs.).
7. Lower the vehicle.
8. Check the automatic transmission fluid level. Refer to Fluid Capacity.
