Intermediate

REMOVAL PROCEDURE

CAUTION: Refer to Belt Replacement Caution in Service Precautions.

NOTE: Refer to Servicing and Replacing Seat Belt Notice in Service Precautions.

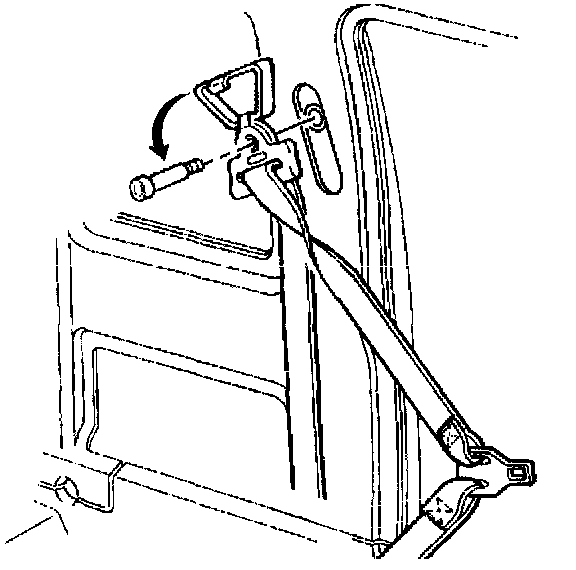

1. Remove the cover from the door pillar anchor plate. Pry up the bottom.
2. Remove the bolt from the door pillar weld nut.

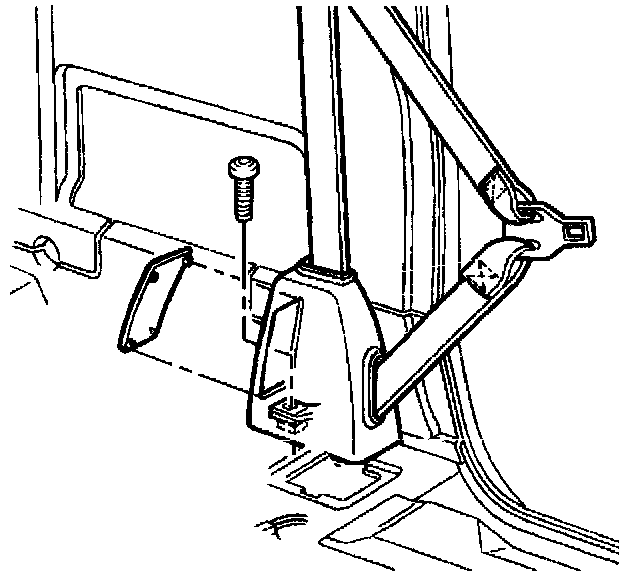

3. Remove the bolt retaining the retractor to the floor panel.
4. Remove the retractor from the vehicle.

INSTALLATION PROCEDURE




1. Install the retractor and belt to the floor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolt through the retractor into the floor panel weld nut.

Tighten
Tighten the bolt to 55 N.m (41 lb ft).




3. Install the bolt through the anchor plate and washer into the door pillar weld nut.

Tighten
Tighten the bolt to 55 N.m (41 lb ft).

4. Install the cover over the door pillar anchor plate.
