Knee Bolster Replacement

Knee Bolster Replacement

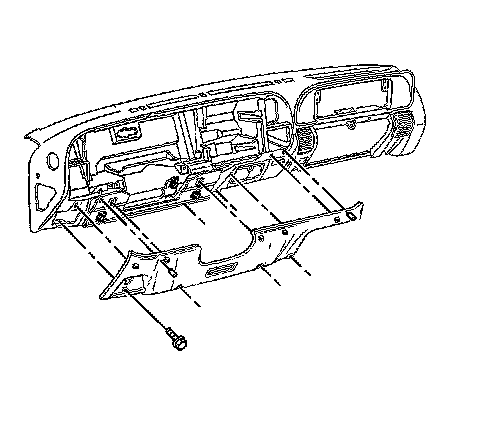

Removal Procedure





1. Remove the knee bolster screws.
2. Unsnap the knee bolster.
3. Twist the brake release cable in order to disengage the knee bolster.
4. Remove the lap cooler hose.



Installation Procedure





1. Install the lap cooler hose.
2. Connect the brake release cable.
3. Snap the knee bolster into the instrument panel assembly.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the knee bolster screws.

Tighten the knee bolster screws to 2 N.m (18 lb in).
