Front Seat Head Restraint Retainer Replacement (Bench)

Front Seat Head Restraint Retainer Replacement (Bench)

Removal Procedure

1. Remove the seat back trim cover and the pad.

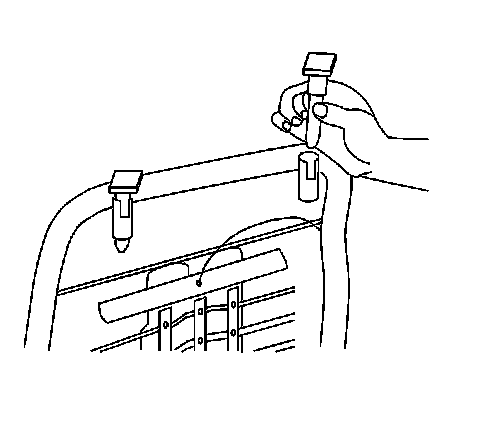

2. Remove the headrest guide(s) from the seat back frame by squeezing the retaining tabs together at the base of the guide and lifting up.



Installation Procedure





1. Install the headrest guide(s) by pressing into the seat back frame until the retaining tabs snap into place at the bottom of the frame opening.
2. Install the seat back trim cover and the pad.
