Home >> Chevy Truck >> 2000 >> C Tahoe 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> 4L60-E/4L65-E Automatic Transmission >> VSS, 4WD and Upshift Controls

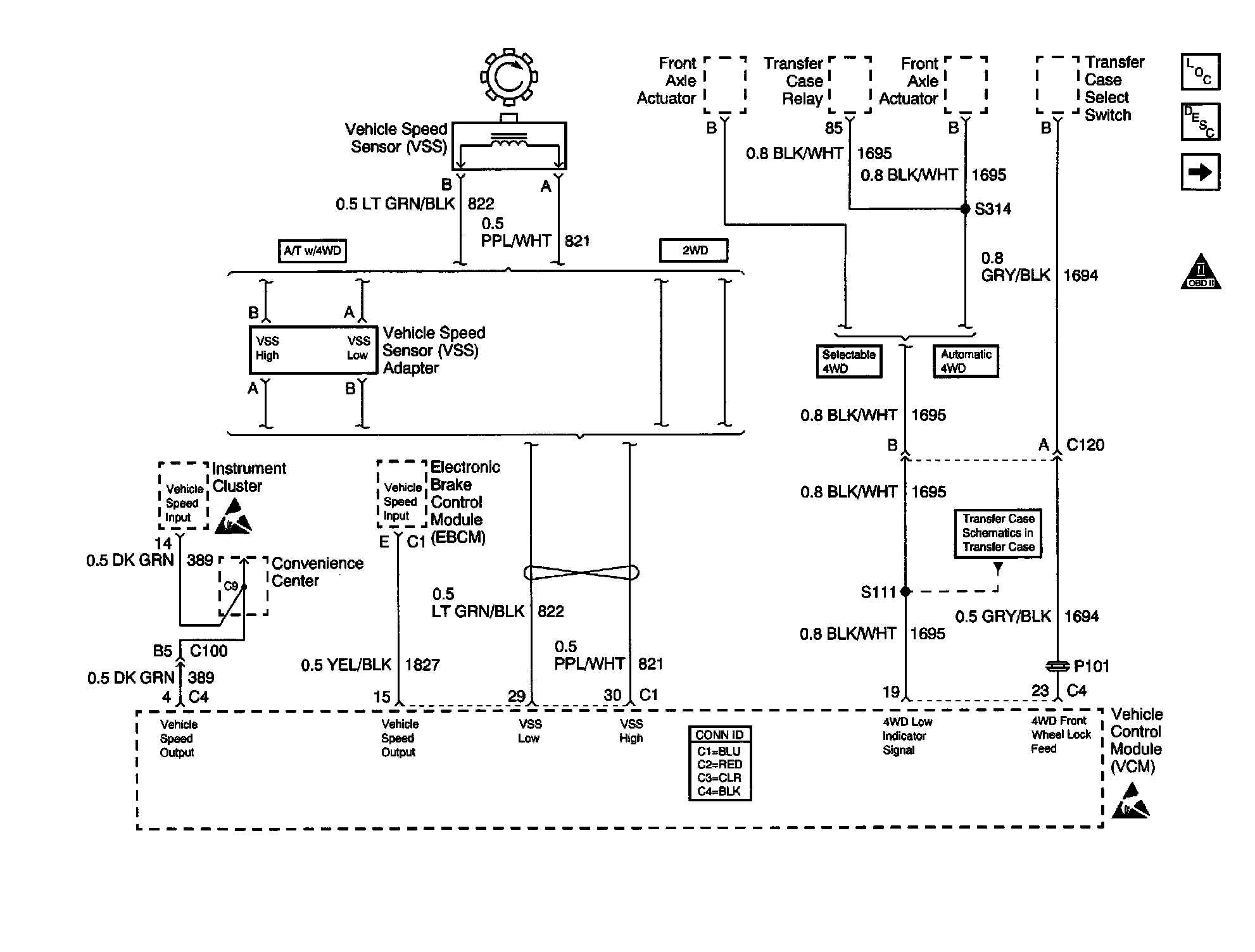

VSS, 4WD and Upshift Controls
