Throttle Cable/Linkage: Service and Repair

REMOVAL PROCEDURE

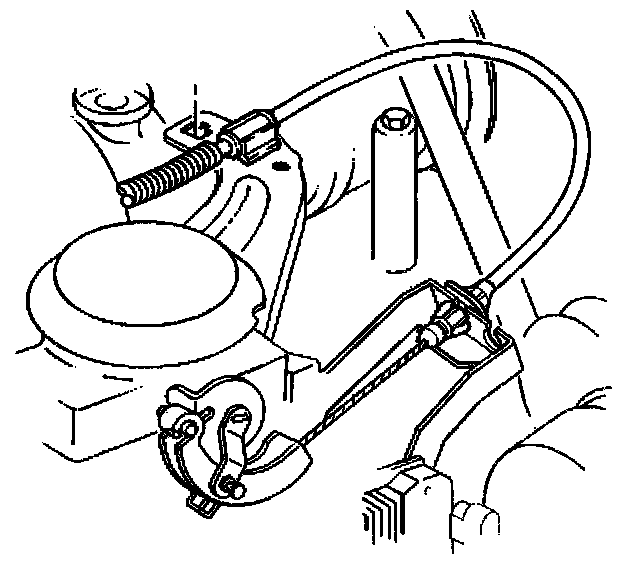

1. Disconnect the accelerator cable from the throttle body lever.




2. Remove the accelerator cable from the accelerator cable bracket.




3. Remove the accelerator cable from the cable routing bracket.




4. Remove the accelerator cable from the accelerator pedal (2).




5. Remove the accelerator cable from the dash panel (1).

INSTALLATION PROCEDURE




1. Install the accelerator cable to the dash panel (1).




2. Install the accelerator cable to the accelerator pedal (2).




3. Install the accelerator cable to the cable routing bracket.




4. Install the accelerator cable to the accelerator cable bracket.




5. Install the accelerator cable to the throttle body lever.
