Engine

REMOVAL PROCEDURE

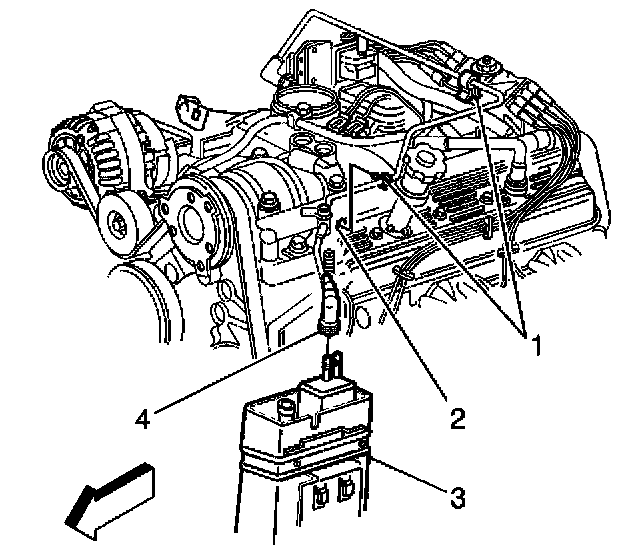

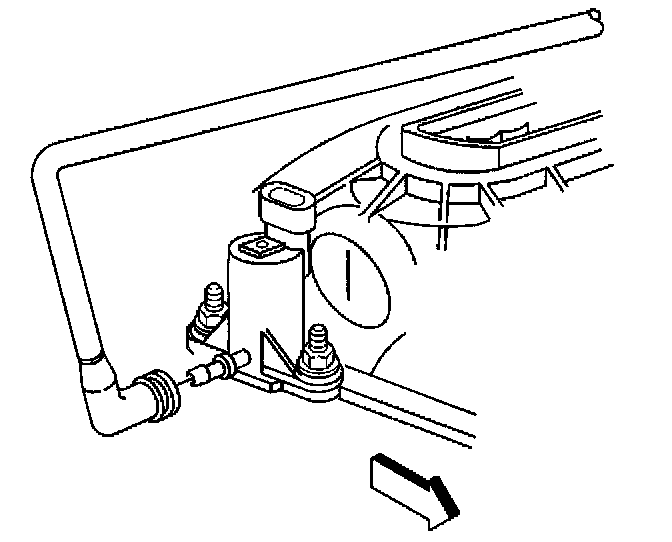

1. Remove the [1][2]EVAP purge pipe from the purge solenoid.




2. Release the [1][2]EVAP purge pipe mounting clips (1).
3. Remove the [1][2]EVAP purge pipe (4) from the EVAP canister.

INSTALLATION PROCEDURE




1. Install the [1][2]EVAP purge pipe mounting clips (1).
2. Install the [1][2]EVAP purge pipe (4) to the EVAP canister.




3. Install the [1][2]EVAP purge pipe to the purge solenoid.
