Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Base Engine Vehicles
>>
VSS and Cruise Controls
VSS and Cruise Controls

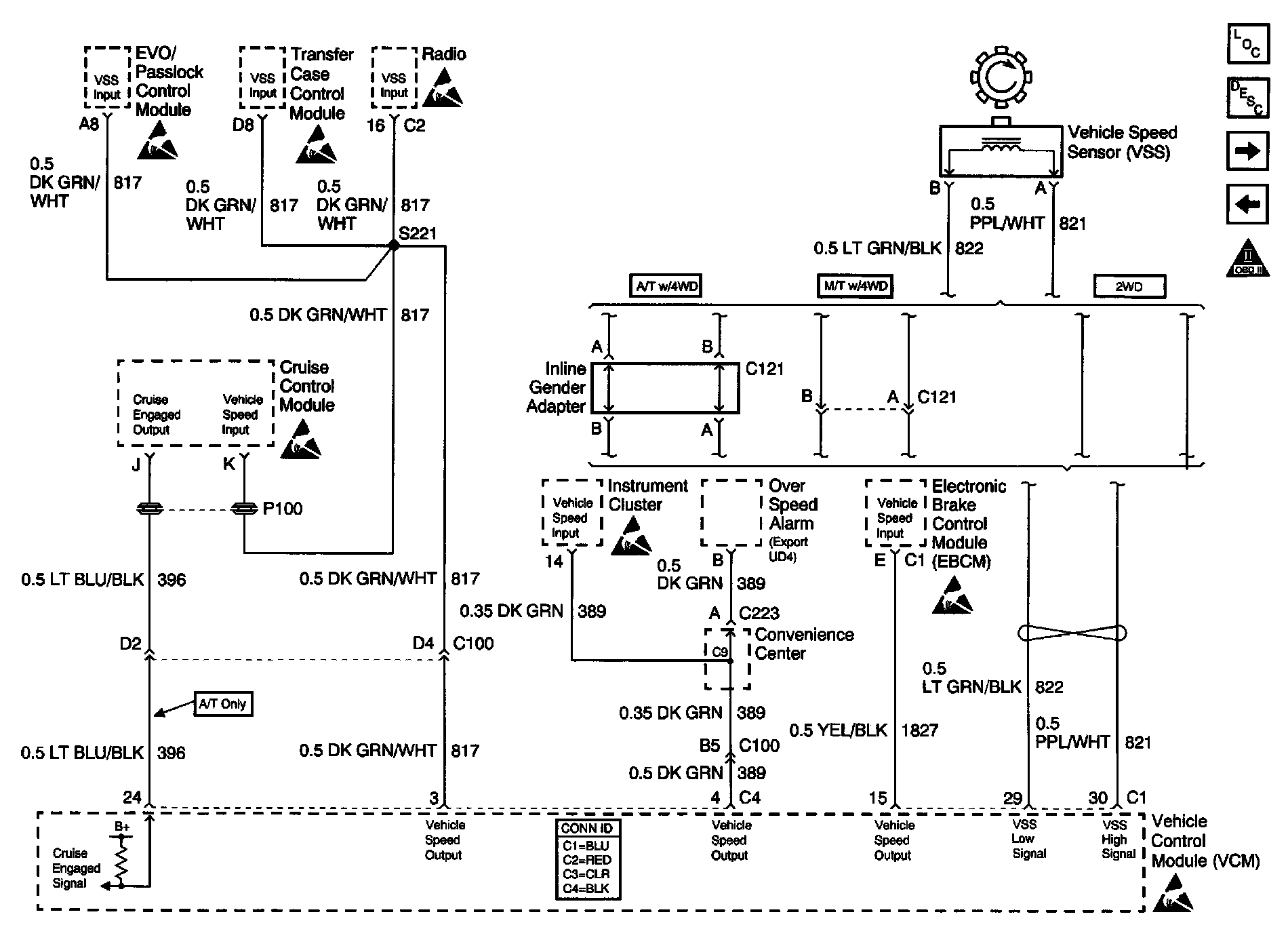

Engine Controls Schematics (Base Engine): VSS And Cruise Controls:
