Home
>>
Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Base Engine Vehicles
>>
Fuel Injector Controls
Fuel Injector Controls

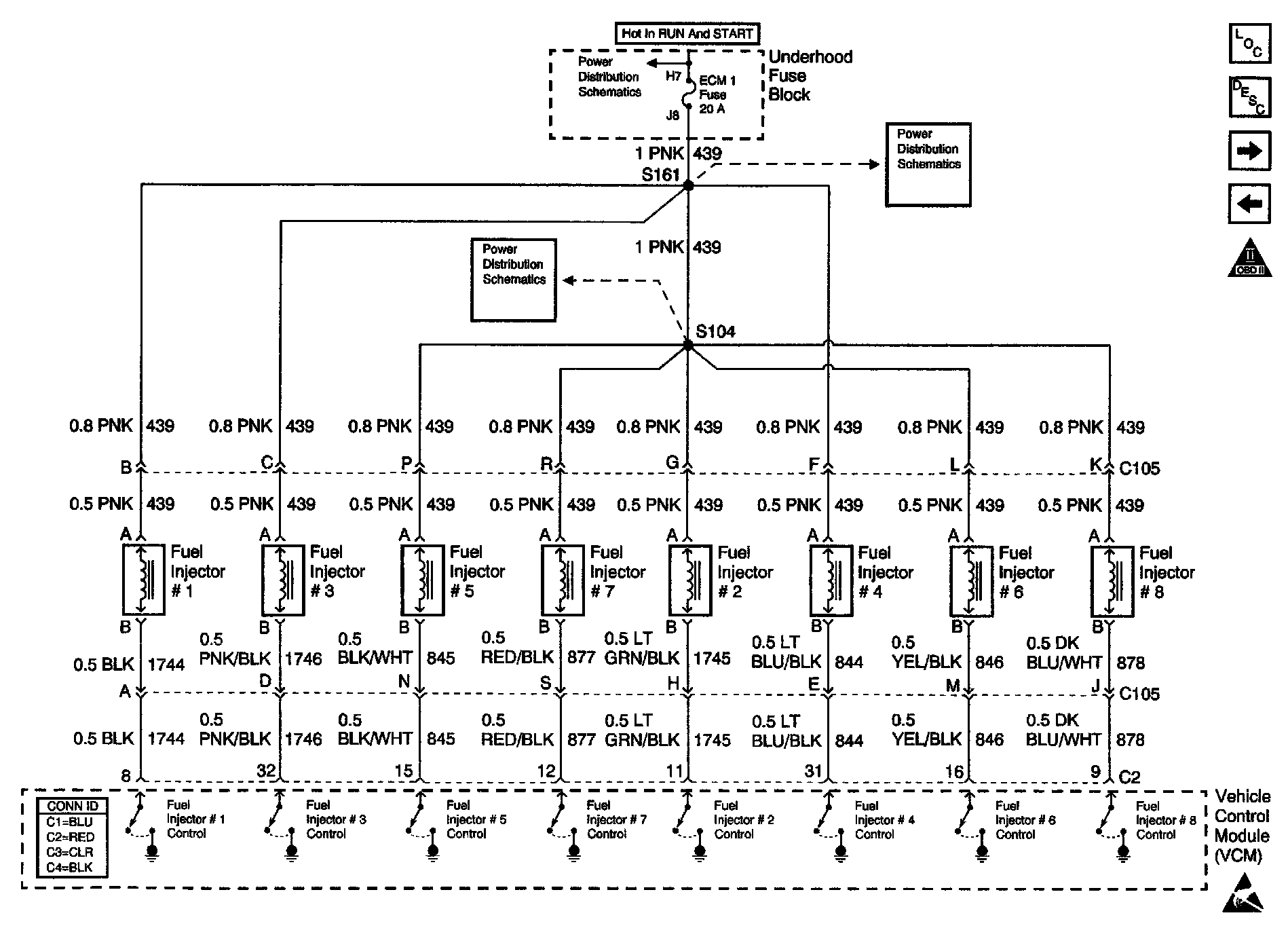

Engine Controls Schematics (Base Engine): Fuel Injector Controls:
