Fuses
>>
RADIO
RADIO

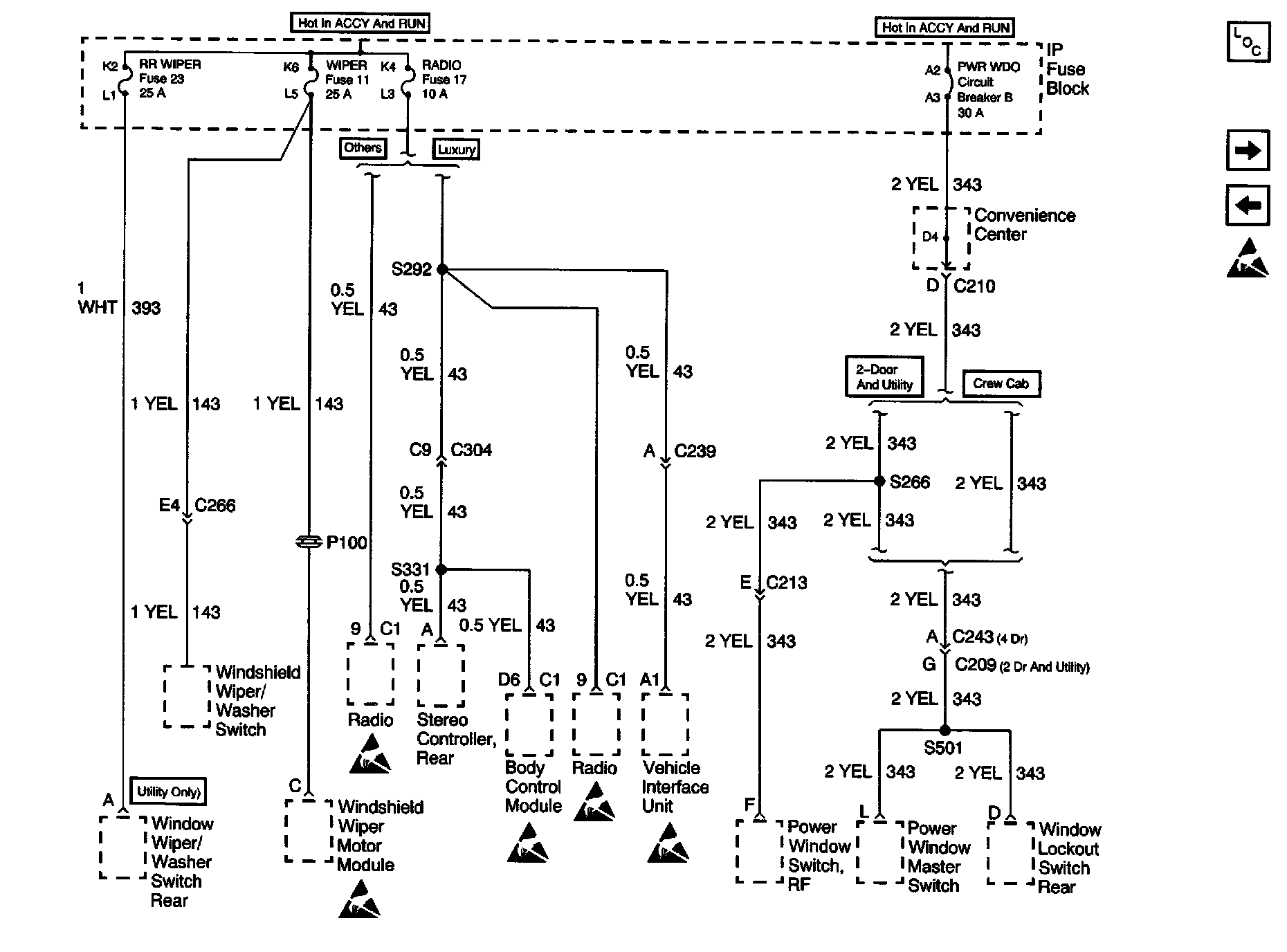

Power Distribution Schematics: RR WIPER, WIPER, RADIO, and PWR WDO Circuit Breaker:
