Blower Motor Resistor Replacement - Auxiliary

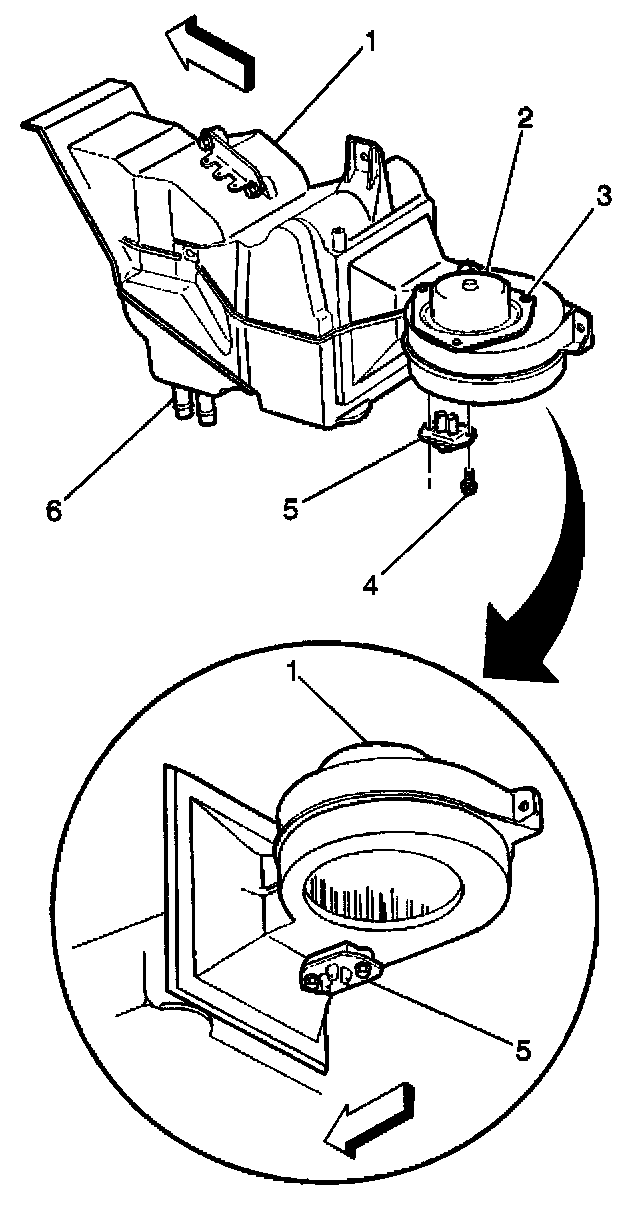

REMOVAL PROCEDURE




1. Remove the right rear quarter trim panel.
2. Disconnect the electrical connectors, as necessary.
3. Remove the screws (4).
4. Remove the blower motor resistor (5).

INSTALLATION PROCEDURE




1. Install the blower motor resistor (5).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws.

Tighten
Tighten the screws (4) to 1.4 N.m (12 lb in).

3. Connect the electrical connectors, as necessary.
4. Install the right rear quarter trim panel.
5. Verify the circuit operation.
