IP Air Outlet Ducts Replacement

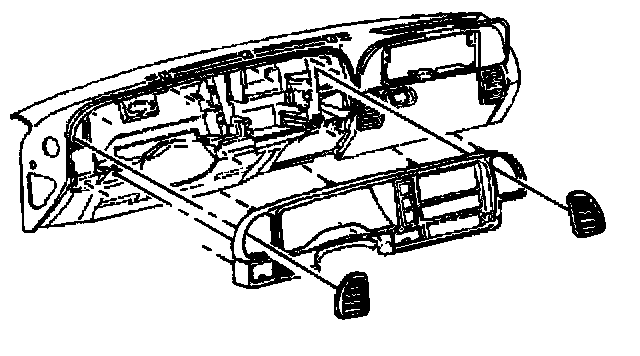

REMOVAL PROCEDURE




1. Remove the instrument panel bezel.
2. Expand the retainers in order to remove the air outlet duct from the bezel.

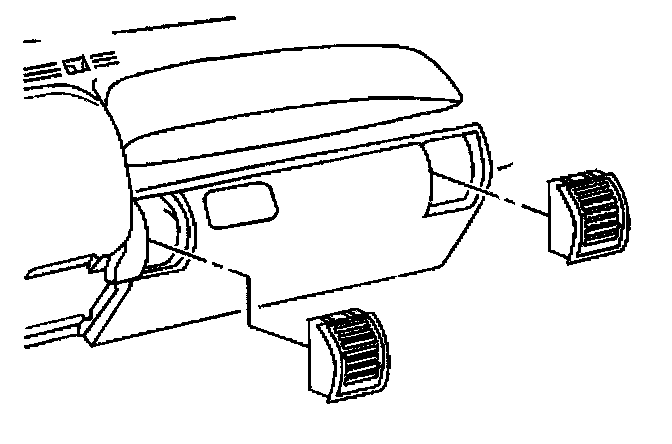

3. Remove the instrument panel storage compartment.
4. Remove the air outlet duct from the instrument panel.

INSTALLATION PROCEDURE




1. Install the air outlet duct to the instrument panel bezel.
2. Install the instrument panel bezel.




3. Install the air outlet duct to the instrument panel.
4. Install the instrument panel storage compartment.
