Floor

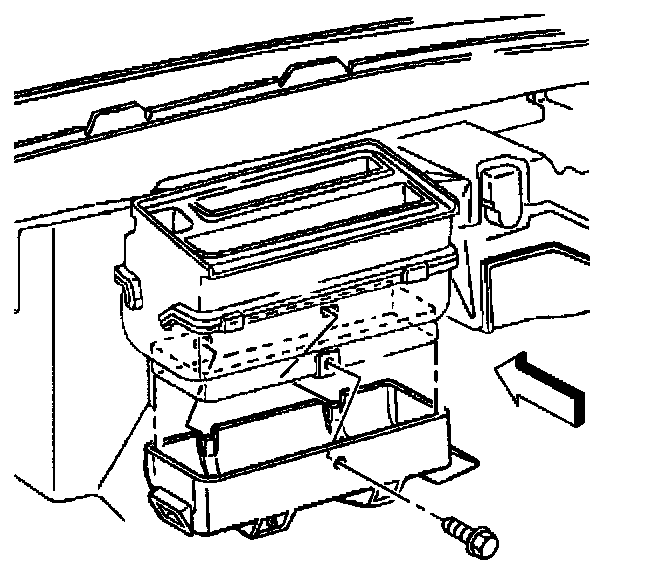

REMOVAL PROCEDURE




1. Remove the screw from the floor air outlet duct.
2. Remove the floor air outlet duct.

INSTALLATION PROCEDURE




1. Install the floor air outlet duct.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screw to the floor air outlet duct.

Tighten
Tighten the screw to 1.9 N.m (17 lb in).
