Door Lock/Indicator Schematics (Luxury)
>>
Door Lock Motors and Body Control Module
Door Lock Motors and Body Control Module

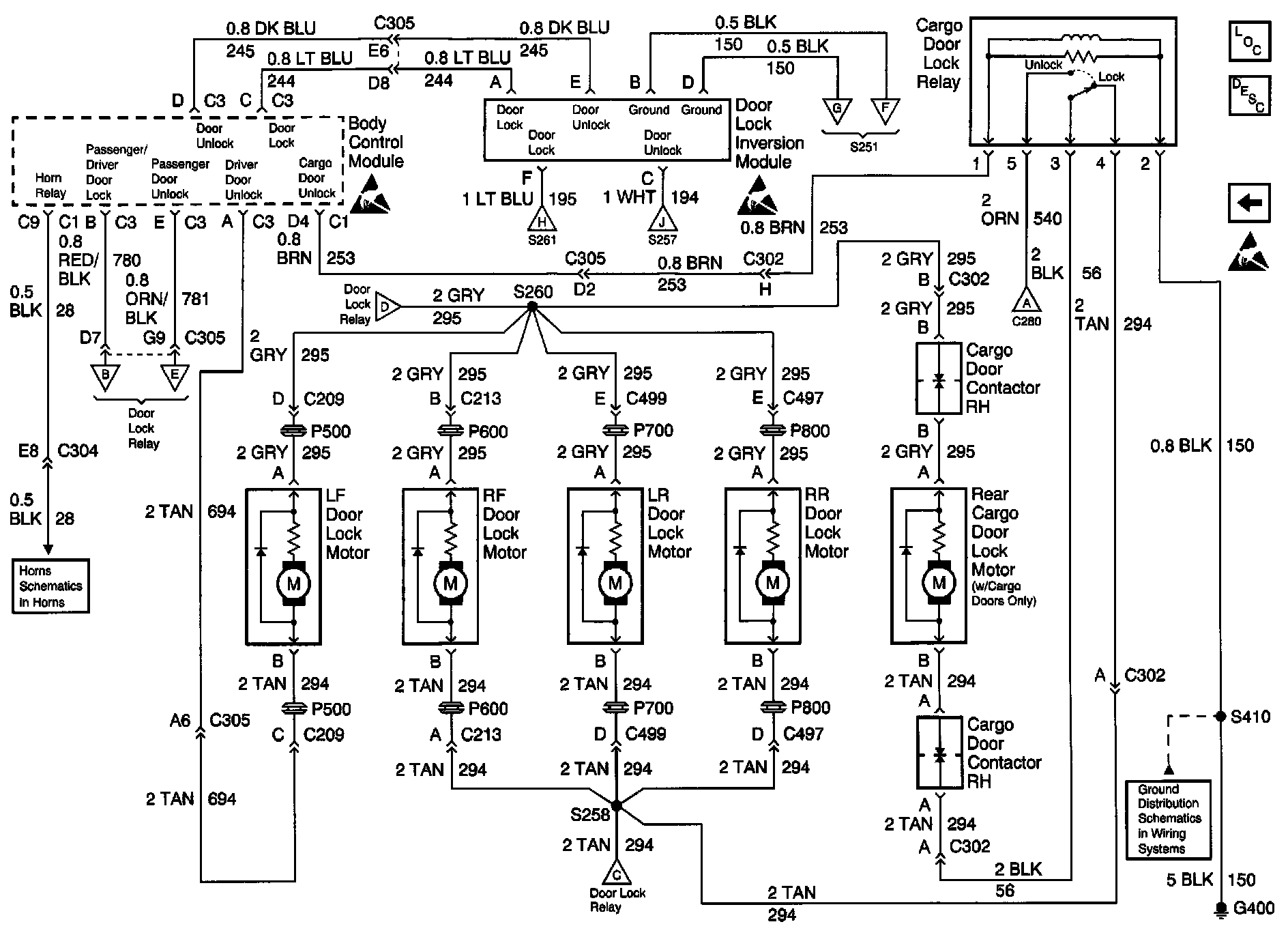

Door Lock/Indicator Schematics (Luxury): Door Lock Motors and Body Control Module:
