Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Outside Rear View Mirrors
Outside Rear View Mirrors

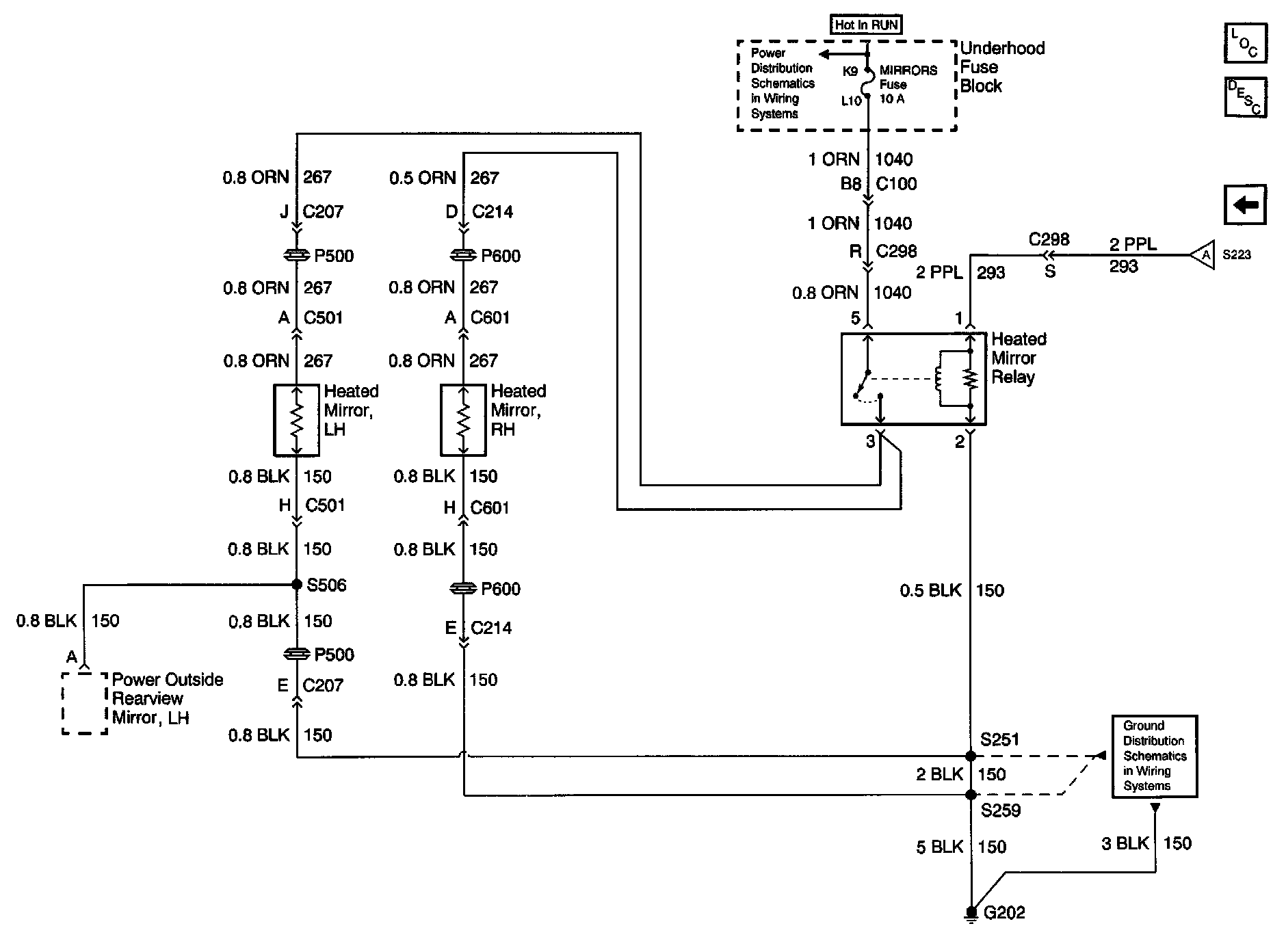

Defogger Schematics: Mirrors Fuse, Heated Mirrors, Heated Mirror Relay:
