Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
System Diagram
>>
Cruise Control Schematics
>>
Cruise Control and Stoplamp Switches
Cruise Control and Stoplamp Switches

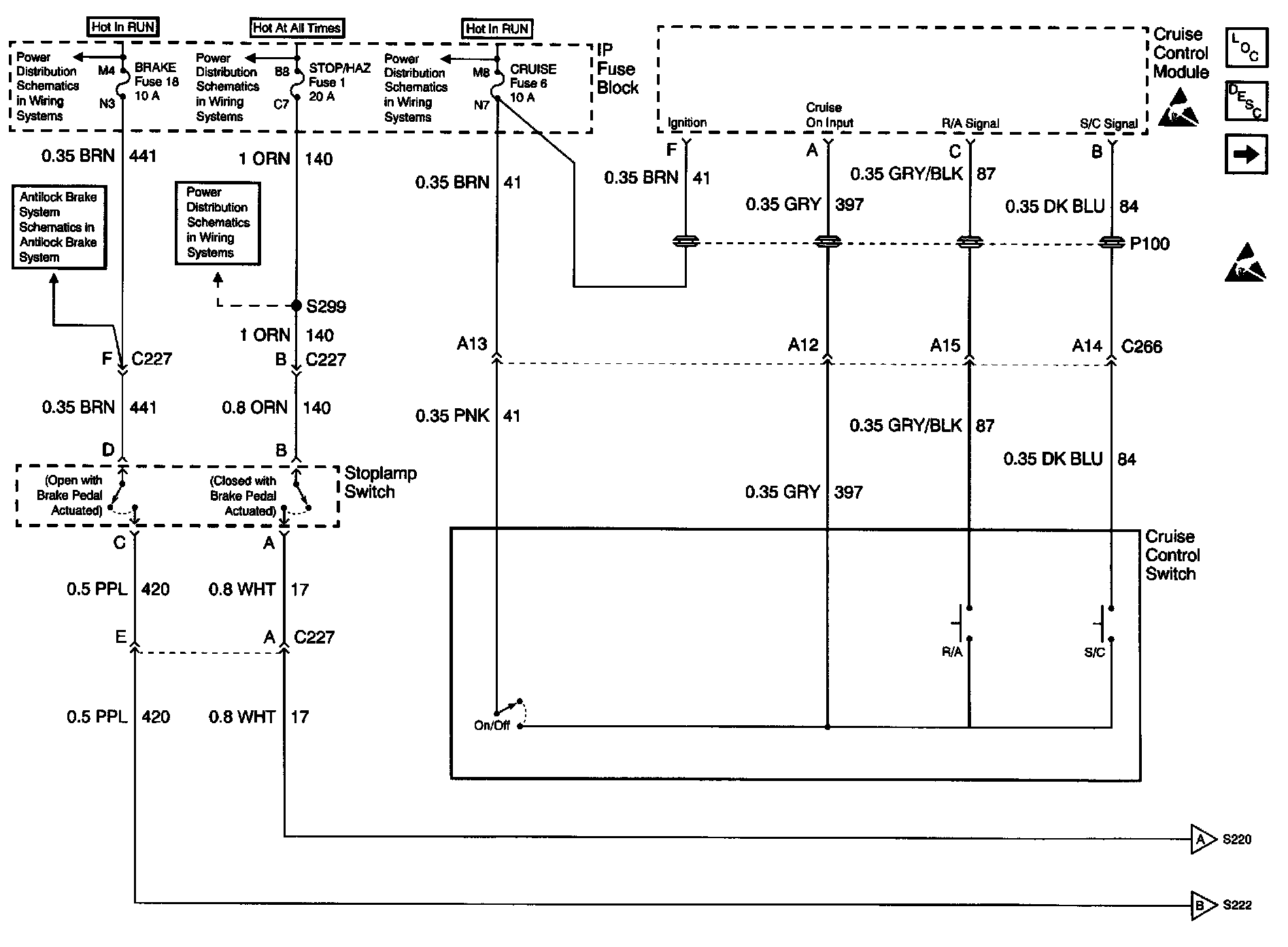

Cruise Control Schematics: Cruise Control and Stoplamp Switches:
