Cellular Phone
>>
Onstar Inputs and Outputs
Onstar Inputs and Outputs

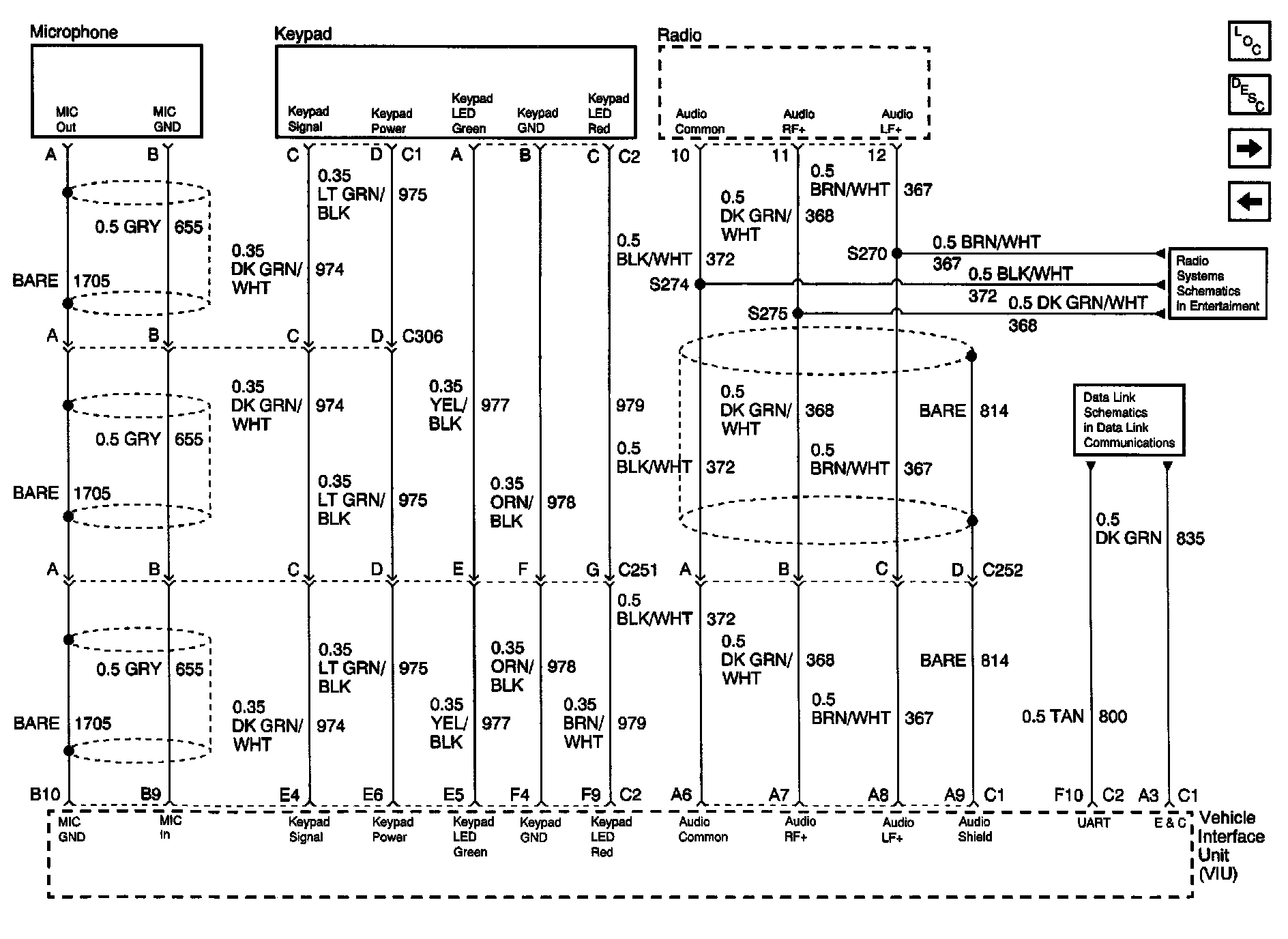

Onstar (R) Schematics: Onstar Inputs and Outputs:
