Home
>>
Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>

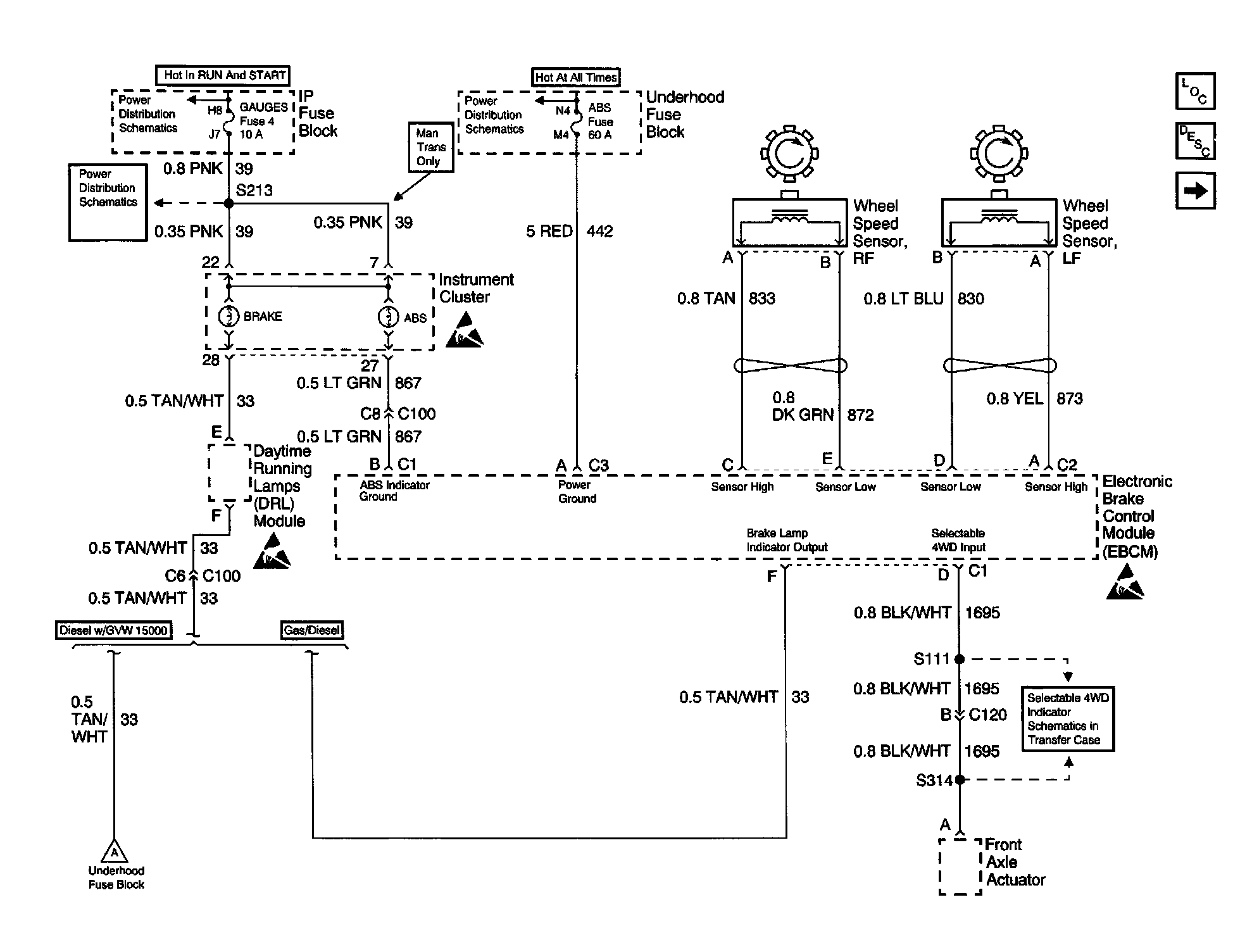

Indicator Control and Wheel Speed Sensors
Indicator Control and Wheel Speed Sensors
