Home >> Chevy Truck >> 2000 >> C Tahoe 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Relay >> Power Door Lock Relay (Except Luxury)

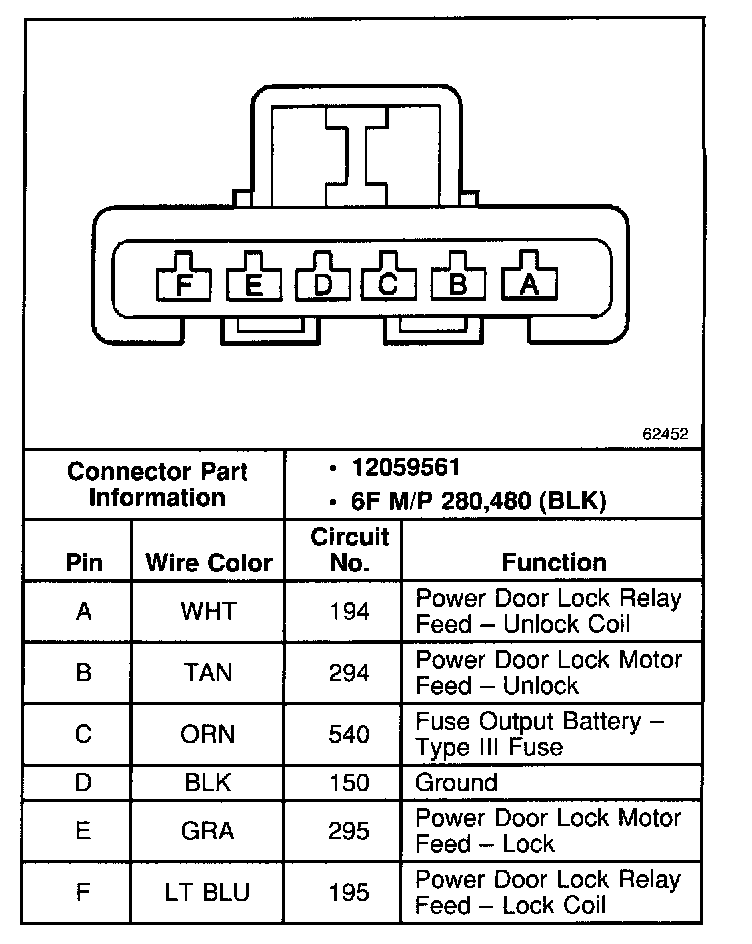

Power Door Lock Relay (Except Luxury)

Power Door Lock Relay (Except Luxury):
