Home
>>
Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump
>>
Fuel Balance Pump Relay (Dual Tank)
Fuel Balance Pump Relay (Dual Tank)

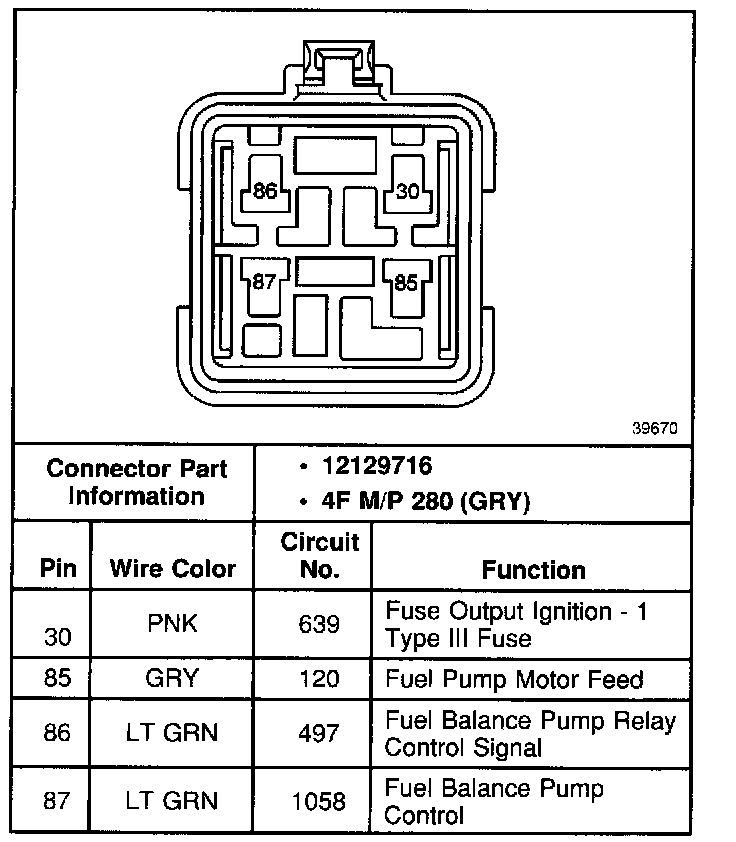

Fuel Balance Pump Relay (Dual Tank):
