Home >> Chevy Truck >> 2000 >> C Tahoe 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> Fog/Driving Lamp Switch >> Fog Lamp Switch (Luxury)

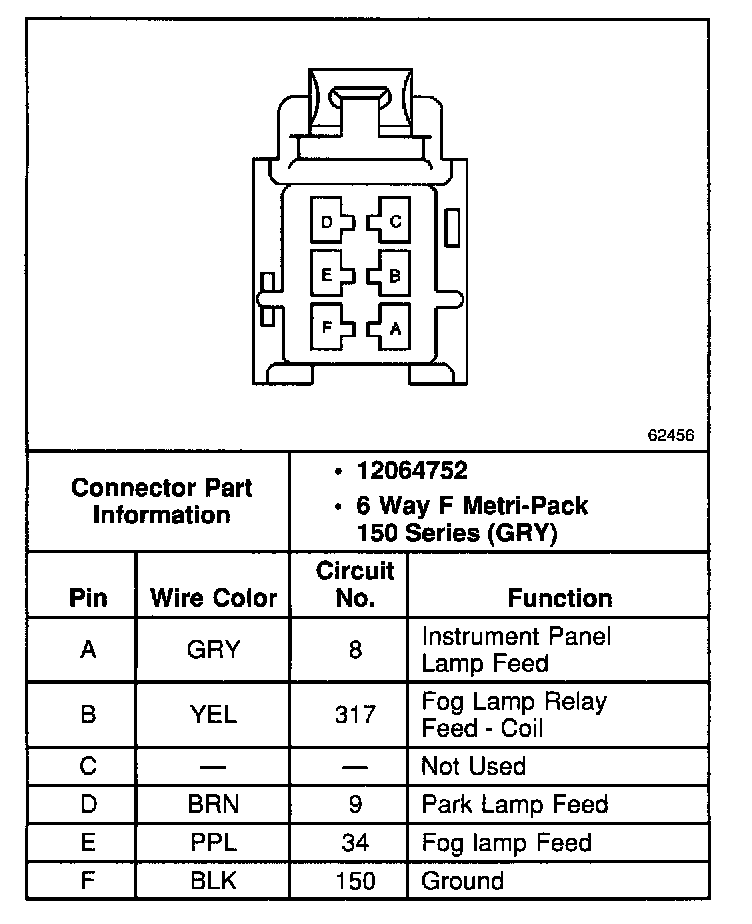

Fog Lamp Switch (Luxury)

Fog Lamp Switch (Luxury):
