Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor Relay
>>
Auxiliary Blower Motor Relay
>>
High
High
Auxiliary Blower Motor Relay, High:

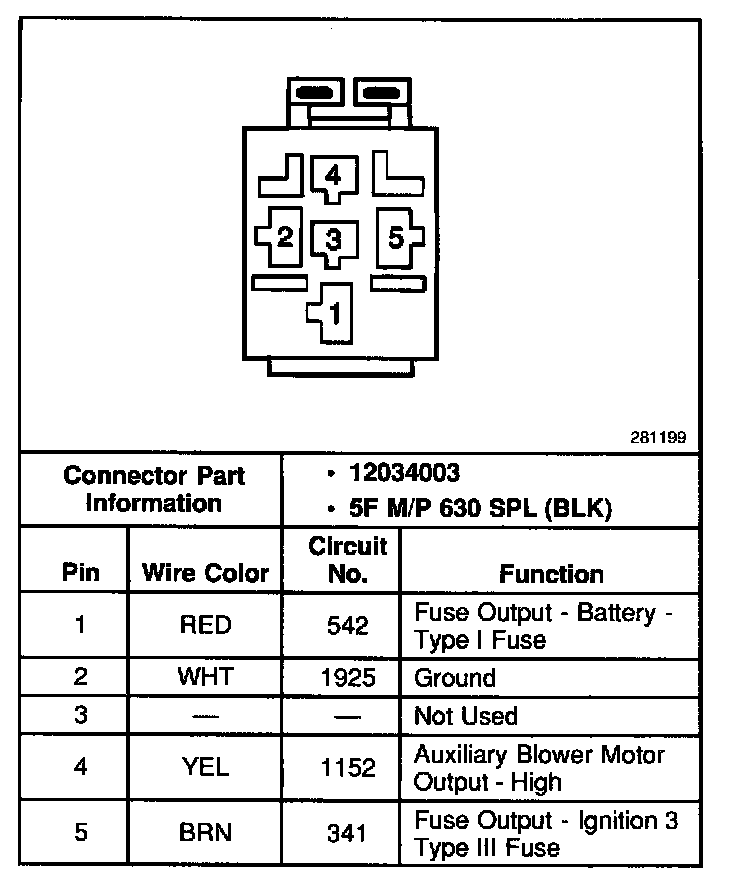

Auxiliary Blower Motor Relay, High:
