Chevy Truck
>>
2000
>>
C Tahoe 2WD V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Door, HVAC
>>
System Diagram
>>
Temperature Door Motor
Temperature Door Motor

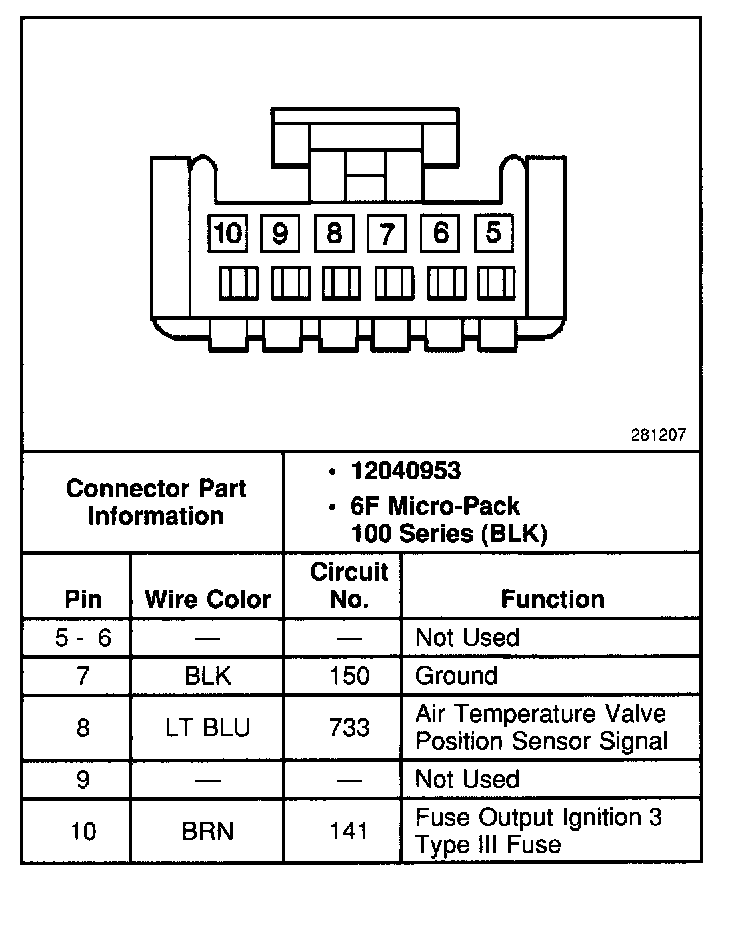

Temperature Door Motor:
