Tube Adapter Replacement

Removal Procedure





Important: If you must remove more than one tube adapter at one time, lightly stamp the BPMV with a number (1, 2 or 3) in order to indicate the number of grooves cut into the tube adapters. This procedure will aid proper reassembly.

1. Remove the appropriate brake line from the tube adapter.

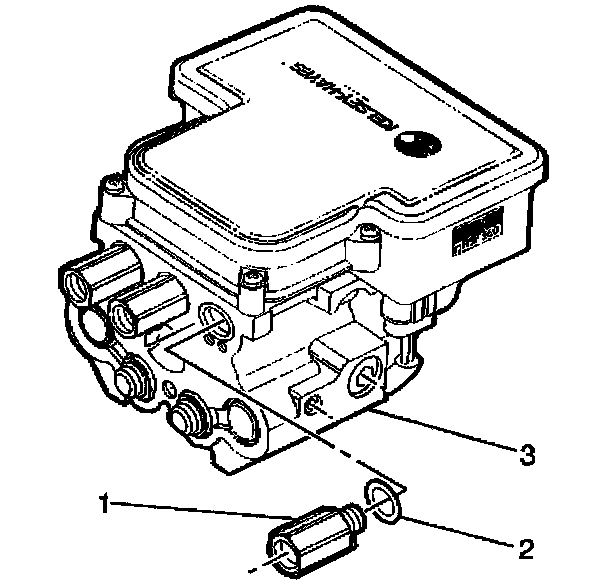

2. Remove the tube adapter (1).

Installation Procedure





Notice: Refer to Fastener Notice, in Service Precautions.

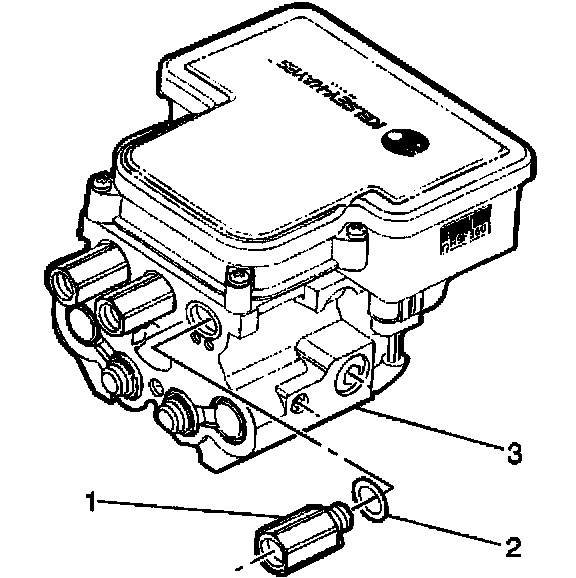

1. Install the new tube adapter (1).

^ Tighten the tube adapter to 31 Nm (23 ft. lbs.).

2. Install the brake line.

^ Tighten the brake line to 30 Nm (22 ft. lbs.).

3. Bleed the system. Refer to Automated Bleed Procedure.
