Sealing Strip Replacement - Side Front Door Bottom Auxiliary

Sealing Strip Replacement - Side Front Door Bottom Auxiliary

Tools Required

J 38778 Trim Panel Remover

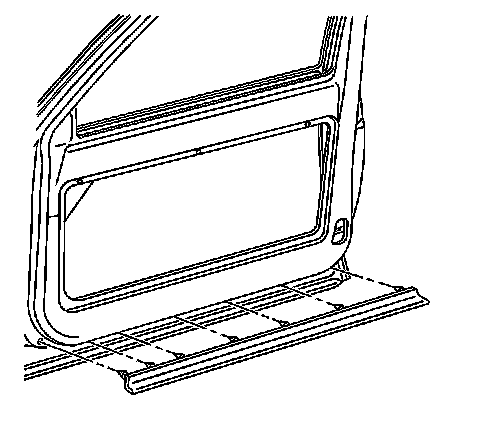

Removal Procedure

1. Open the door.




2. Using the J 38778, remove the weatherstrip from the mounting surface.



Installation Procedure





1. Press the retainers into place in order to install the weatherstrip to the mounting surface.
2. Close the door.
