Windshield Pillar Garnish Molding Replacement

Windshield Pillar Garnish Molding Replacement

Removal Procedure





1. Remove the hinge pillar trim panel.

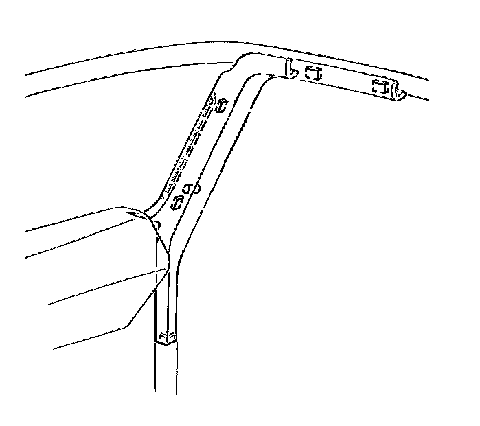

2. Remove the windshield pillar garnish molding.
Pull the molding straight out in order to release the retainers.



Installation Procedure





1. Install the windshield pillar garnish molding.
2. Insert the molding retainers into the slots and press.
3. Install the hinge pillar trim panel.
