MAP Pocket Trim Panel Replacement

REMOVAL PROCEDURE

TOOLS REQUIRED
J 38778 Trim Panel Remover

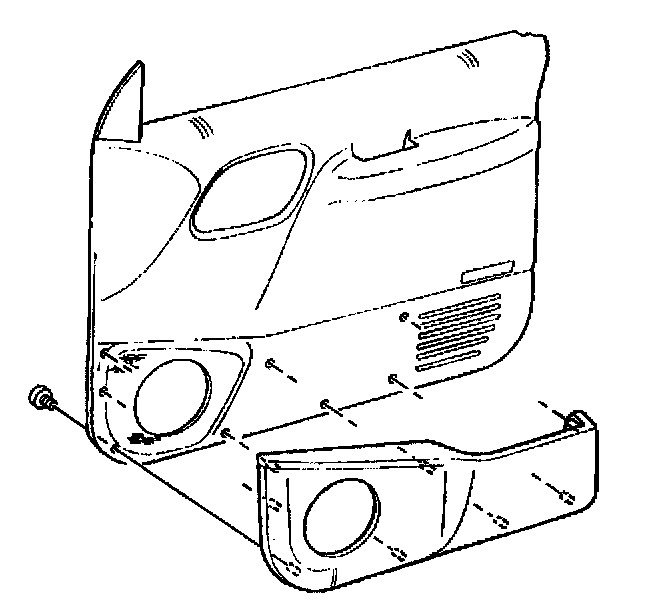

1. Remove the trim panel.
2. Pry the retainers from the trim panel using the J 38778.
3. Remove the map pocket from the trim panel.

INSTALLATION PROCEDURE
1. Install the map pocket to the trim panel.
2. Snap the retainers into the trim panel.
3. Install the trim panel to the door.
